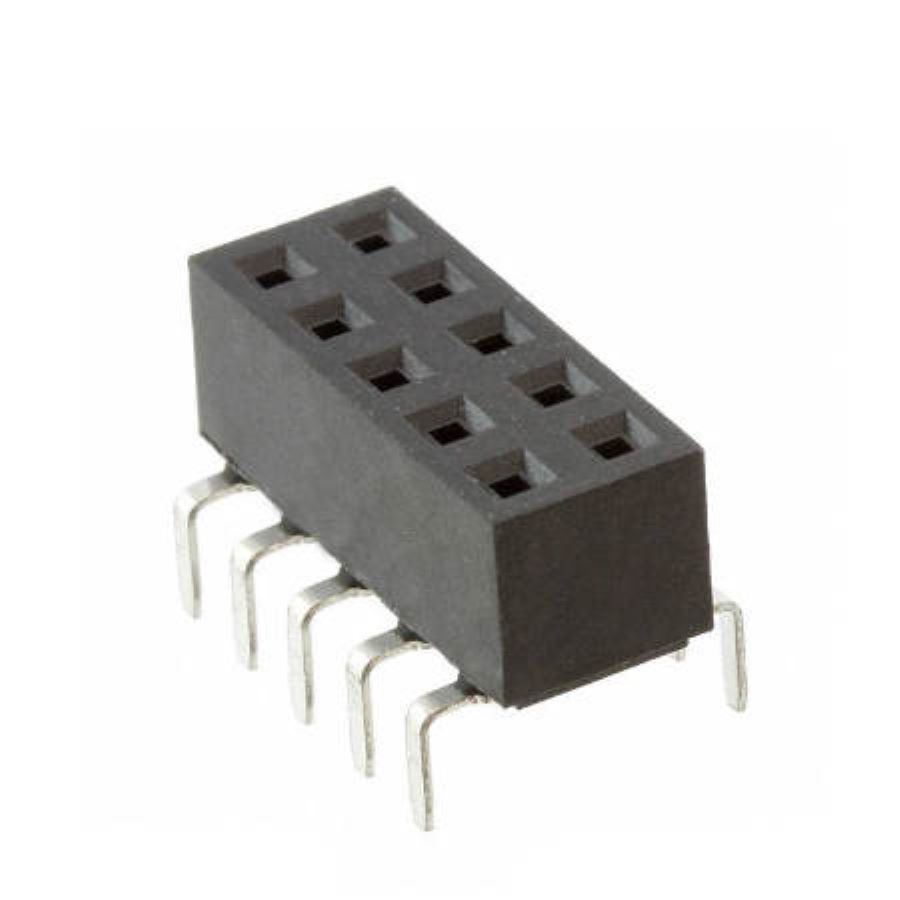

M20-7850546
Manufacturer:
Harwin
Mfr.Part #:
M20-7850546
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 13.2 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| Depth | 5.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Socket |
| Number of Contacts | 10 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 500 V |
Stock: 38
Distributors
pcbx
pcbxUnit Price$0.78835
Ext.Price$0.78835
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78835 | $0.78835 |
| 10 | $0.73887 | $7.38870 |
| 25 | $0.69250 | $17.31250 |
| 50 | $0.64904 | $32.45200 |
| 100 | $0.60831 | $60.83100 |
| 300 | $0.57013 | $171.03900 |
| 500 | $0.53435 | $267.17500 |
| 1000 | $0.50082 | $500.82000 |
| 3000 | $0.46939 | $1408.17000 |
| 5000 | $0.43993 | $2199.65000 |
| 10000 | $0.41234 | $4123.40000 |
