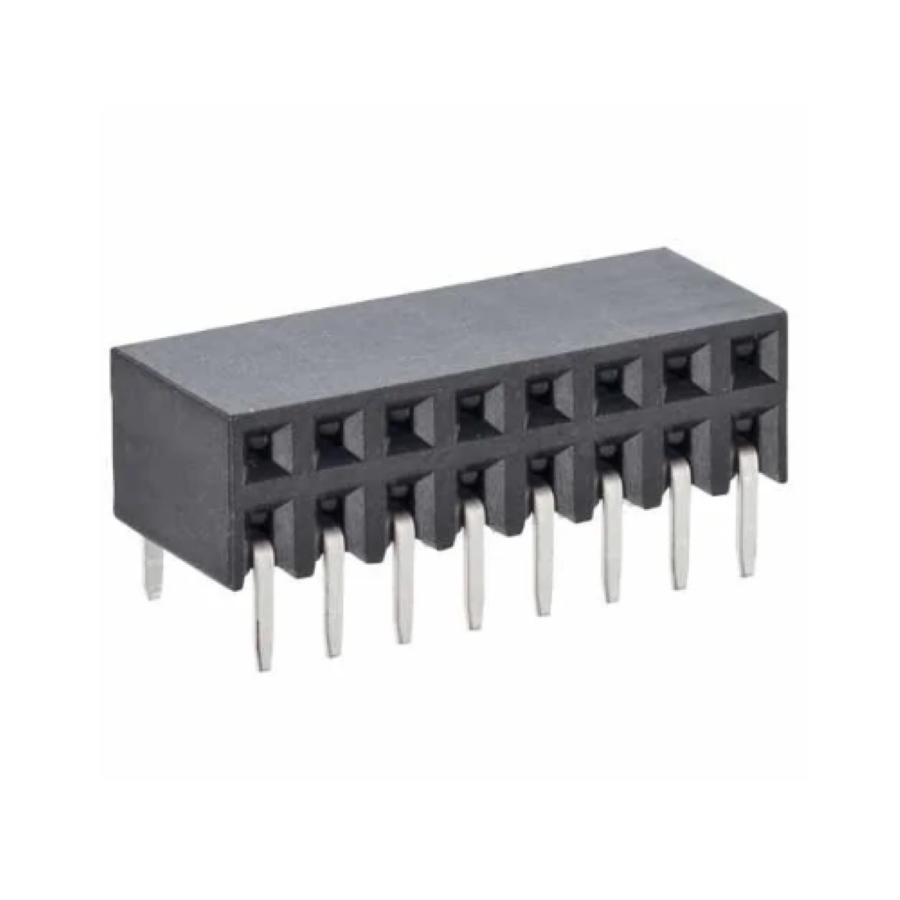

M20-7881046
Manufacturer:
Harwin
Mfr.Part #:
M20-7881046
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:20 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 25.4 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Material | Glass, Polyester |
| Packaging | Tube |
| Depth | 8.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 20 |
| Hole Diameter | 800 µm |
| Connector Type | Receptacle, Socket |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
| Termination Post Length | 3 mm |
Stock: 38
Distributors
pcbx
pcbxUnit Price$1.70815
Ext.Price$1.70815
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.70815 | $1.70815 |
| 10 | $1.37045 | $13.70450 |
| 25 | $1.28532 | $32.13300 |
| 50 | $1.20548 | $60.27400 |
| 100 | $1.13060 | $113.06000 |
| 300 | $1.06037 | $318.11100 |
| 500 | $0.99450 | $497.25000 |
| 1000 | $0.93273 | $932.73000 |
