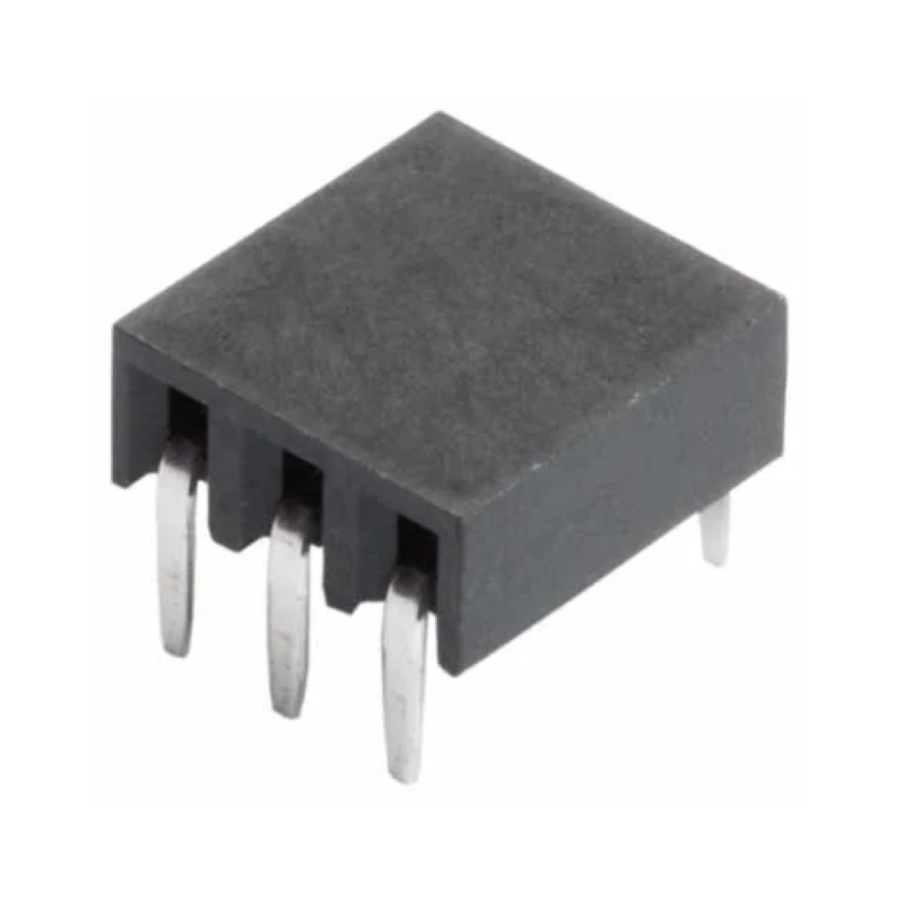

M20-7890846
Manufacturer:
Harwin
Mfr.Part #:
M20-7890846
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 20.52 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| Depth | 8.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 8 |
| Hole Diameter | 800 µm |
| Connector Type | Receptacle, Socket |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
| Termination Post Length | 3 mm |
Stock: 452
Distributors
pcbx
pcbxUnit Price$1.03273
Ext.Price$1.03273
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.03273 | $1.03273 |
| 10 | $0.96785 | $9.67850 |
| 25 | $0.90704 | $22.67600 |
| 50 | $0.85005 | $42.50250 |
| 100 | $0.79664 | $79.66400 |
| 300 | $0.74659 | $223.97700 |
| 500 | $0.69968 | $349.84000 |
| 1000 | $0.65572 | $655.72000 |
| 3000 | $0.61452 | $1843.56000 |
| 5000 | $0.57591 | $2879.55000 |
| 10000 | $0.53973 | $5397.30000 |
