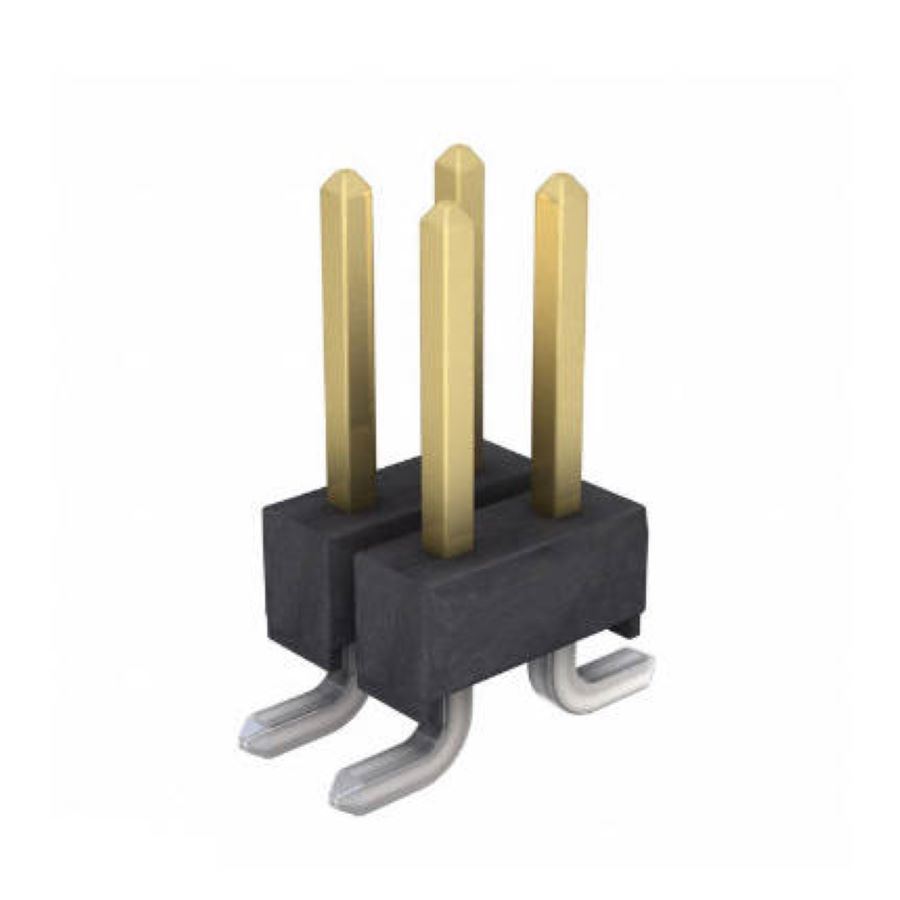

M20-8760242
Manufacturer:
Harwin
Mfr.Part #:
M20-8760242
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.555 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Male Pin |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 5.7912 mm |
| Mating Post Length | 5.8 mm |
Stock: 2357
Distributors
pcbx
pcbxUnit Price$0.19407
Ext.Price$0.19407
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19407 | $0.19407 |
| 10 | $0.16329 | $1.63290 |
| 50 | $0.15085 | $7.54250 |
| 100 | $0.13936 | $13.93600 |
| 500 | $0.12822 | $64.11000 |
| 1000 | $0.11798 | $117.98000 |
| 3000 | $0.10516 | $315.48000 |
| 5000 | $0.10256 | $512.80000 |
| 10000 | $0.10003 | $1000.30000 |
