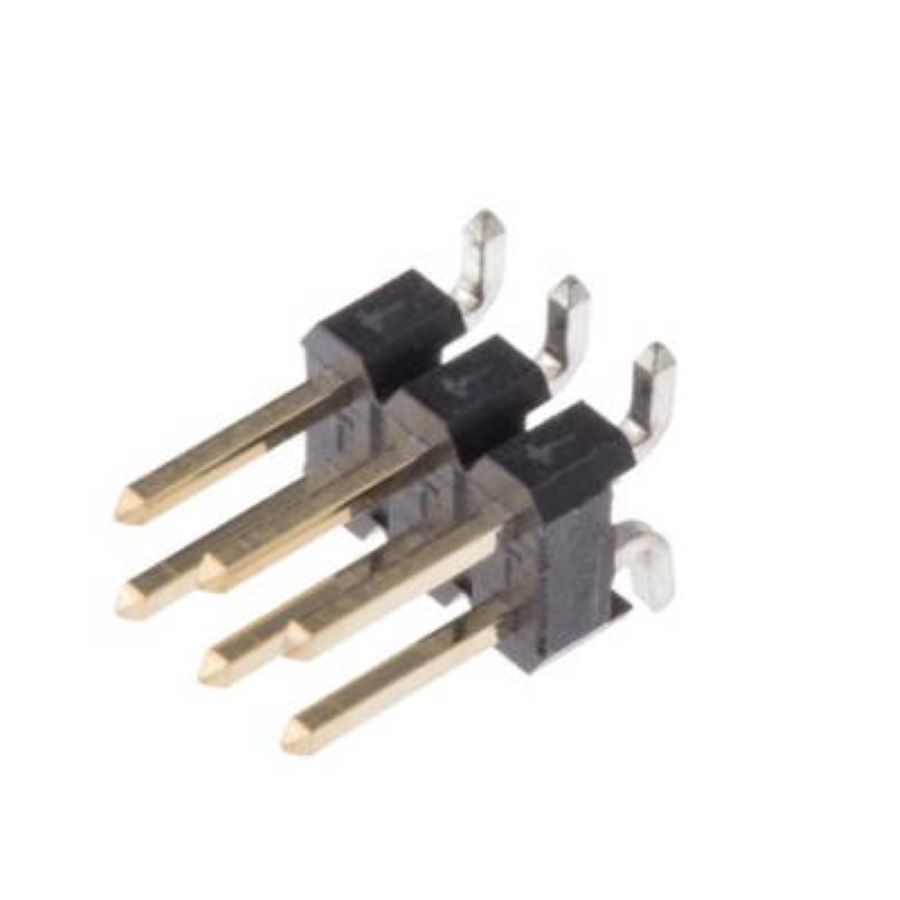

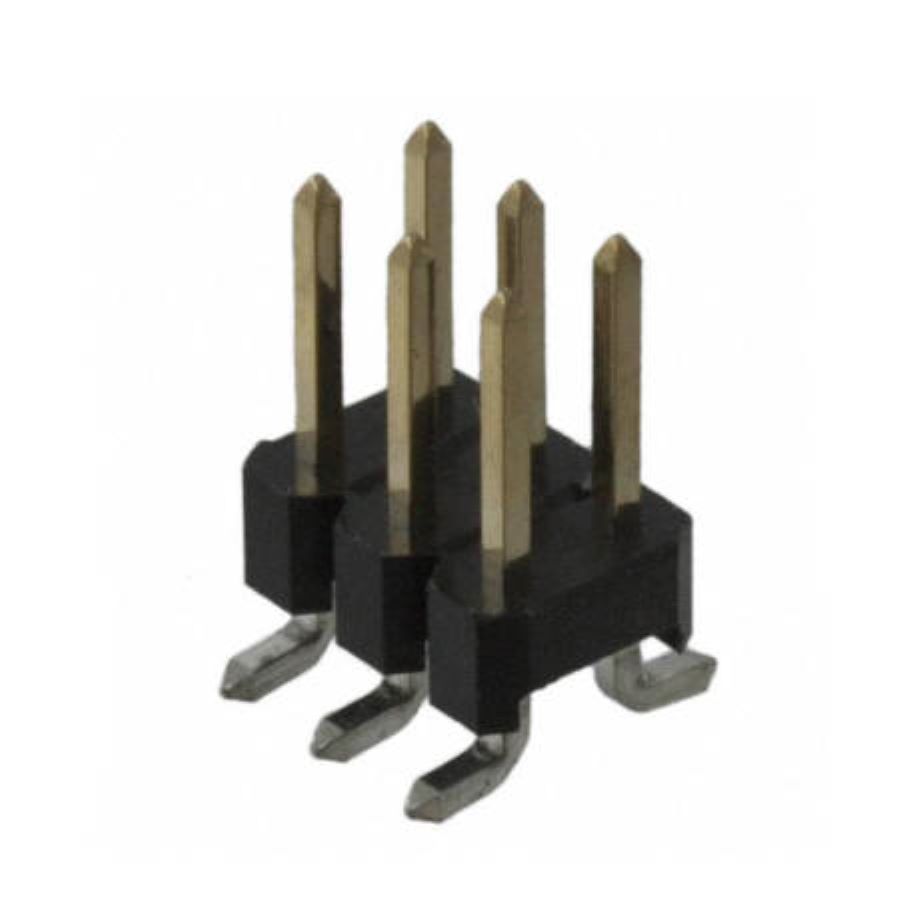

M20-8760342
Manufacturer:
Harwin
Mfr.Part #:
M20-8760342
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header, Cuttable Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 7.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Weight | 0.336 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Header, Cuttable |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 5.7912 mm |
Stock: 6587
Distributors
pcbx
pcbxUnit Price$0.26930
Ext.Price$0.26930
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26930 | $0.26930 |
| 10 | $0.22997 | $2.29970 |
| 25 | $0.21796 | $5.44900 |
| 50 | $0.20657 | $10.32850 |
| 100 | $0.19578 | $19.57800 |
| 300 | $0.18525 | $55.57500 |
| 500 | $0.17529 | $87.64500 |
| 1000 | $0.16586 | $165.86000 |
| 3000 | $0.14790 | $443.70000 |
| 5000 | $0.14705 | $735.25000 |
| 10000 | $0.14620 | $1462.00000 |
