M20-8760542
Manufacturer:
Harwin
Mfr.Part #:
M20-8760542
Datasheet:
Description:

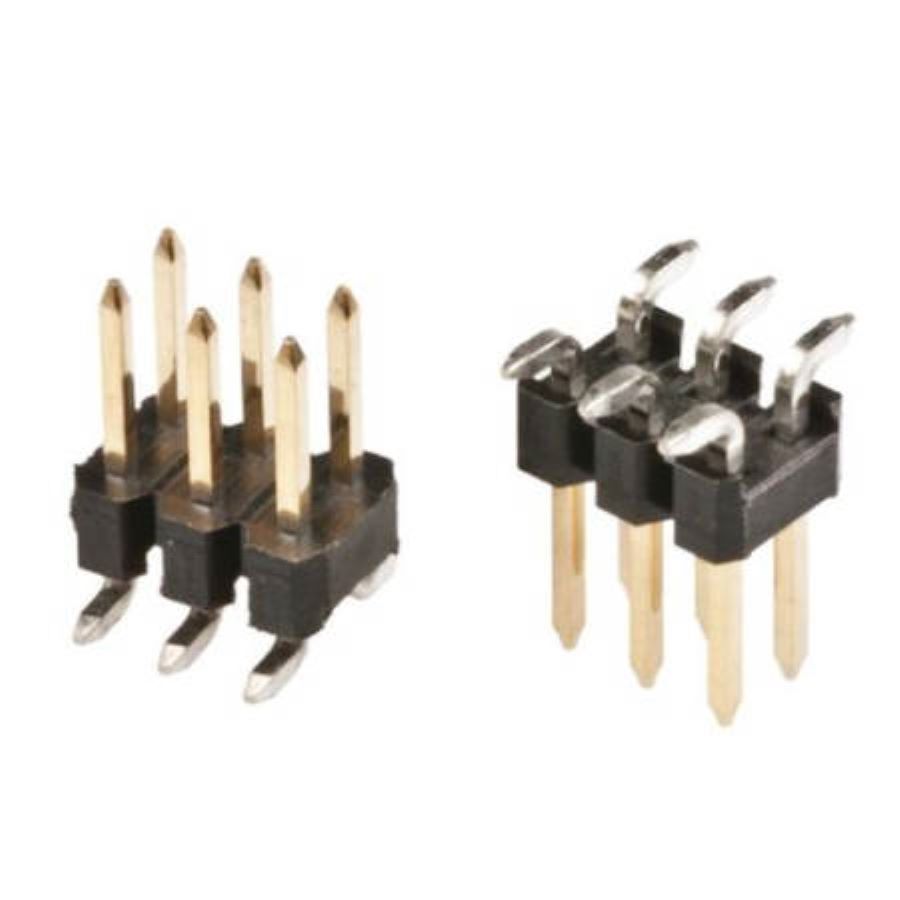

Headers and Wire Housings SMD/SMT Header, Cuttable Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Header, Cuttable |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 5.7912 mm |
Stock: 4447
Distributors
pcbx
pcbxUnit Price$0.51296
Ext.Price$0.51296
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51296 | $0.51296 |
| 10 | $0.43299 | $4.32990 |
| 25 | $0.41016 | $10.25400 |
| 50 | $0.38853 | $19.42650 |
| 100 | $0.36804 | $36.80400 |
| 300 | $0.34770 | $104.31000 |
| 500 | $0.32849 | $164.24500 |
| 1000 | $0.31281 | $312.81000 |
| 3000 | $0.29554 | $886.62000 |
| 5000 | $0.27923 | $1396.15000 |
| 10000 | $0.26591 | $2659.10000 |
