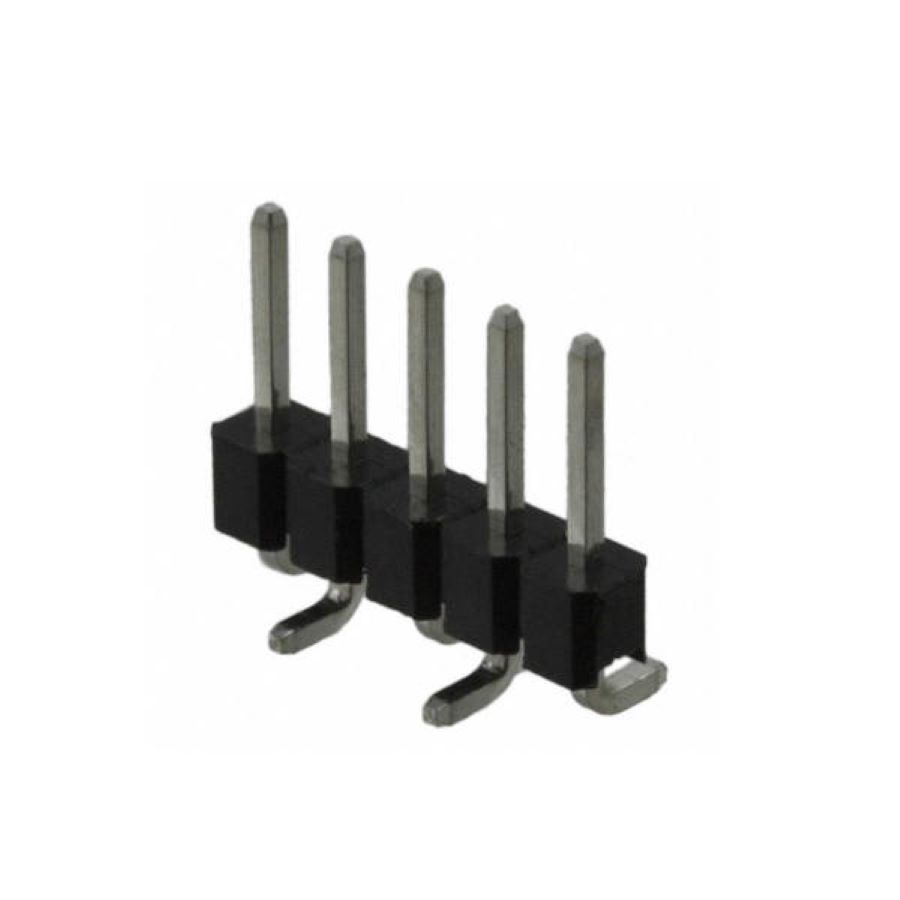

M20-8770546
Manufacturer:
Harwin
Mfr.Part #:
M20-8770546
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.555 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 2.54 mm |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 5 |
| Connector Type | Male Pin |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Contact Mating Length | 5.7912 mm |
| Mating Post Length | 5.08 mm |
Stock: 4304
Distributors
pcbx
pcbxUnit Price$0.21287
Ext.Price$0.21287
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21287 | $0.21287 |
| 10 | $0.18124 | $1.81240 |
| 50 | $0.16701 | $8.35050 |
| 100 | $0.15389 | $15.38900 |
| 500 | $0.14188 | $70.94000 |
| 1000 | $0.13080 | $130.80000 |
| 3000 | $0.11627 | $348.81000 |
| 5000 | $0.11368 | $568.40000 |
| 10000 | $0.11114 | $1111.40000 |
