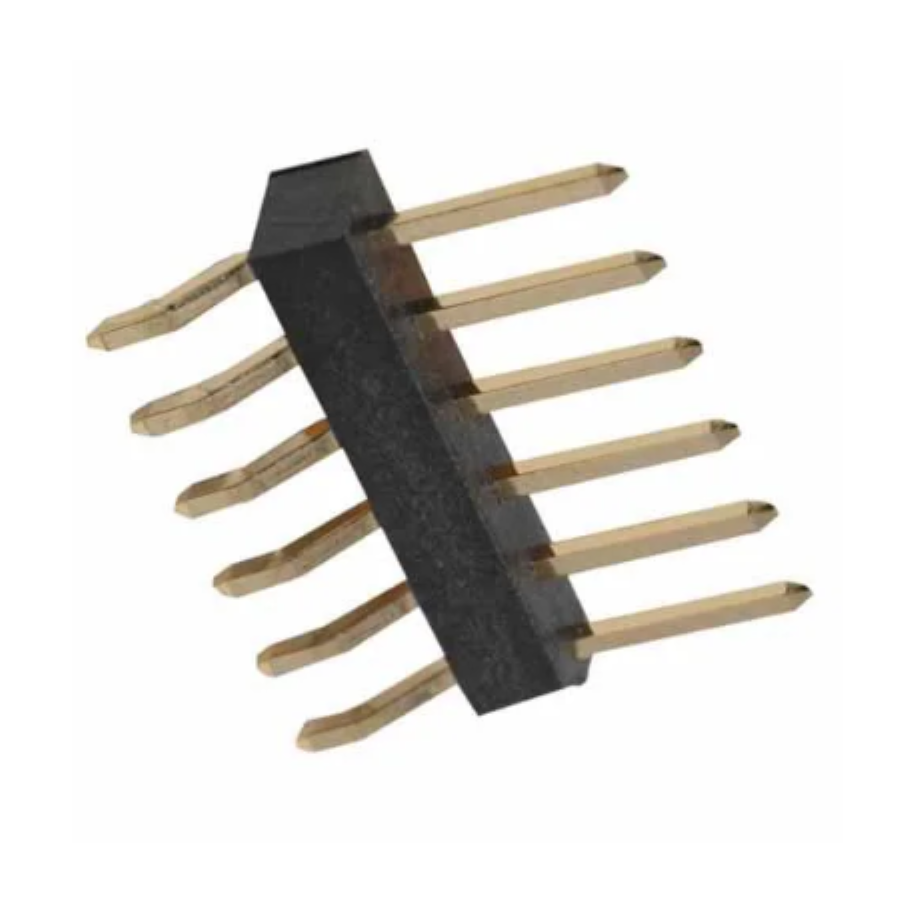

M20-8900605
Manufacturer:
Harwin
Mfr.Part #:
M20-8900605
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header, Cuttable Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.24 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 11.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Header, Cuttable |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 5.9944 mm |
Stock: 709
Distributors
pcbx
pcbxUnit Price$0.51901
Ext.Price$0.51901
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51901 | $0.51901 |
| 10 | $0.43987 | $4.39870 |
| 25 | $0.41617 | $10.40425 |
| 50 | $0.39375 | $19.68750 |
| 100 | $0.37253 | $37.25300 |
| 300 | $0.35246 | $105.73800 |
| 500 | $0.33346 | $166.73000 |
| 1000 | $0.31754 | $317.54000 |
| 3000 | $0.30001 | $900.03000 |
| 5000 | $0.28345 | $1417.25000 |
| 10000 | $0.26993 | $2699.30000 |
