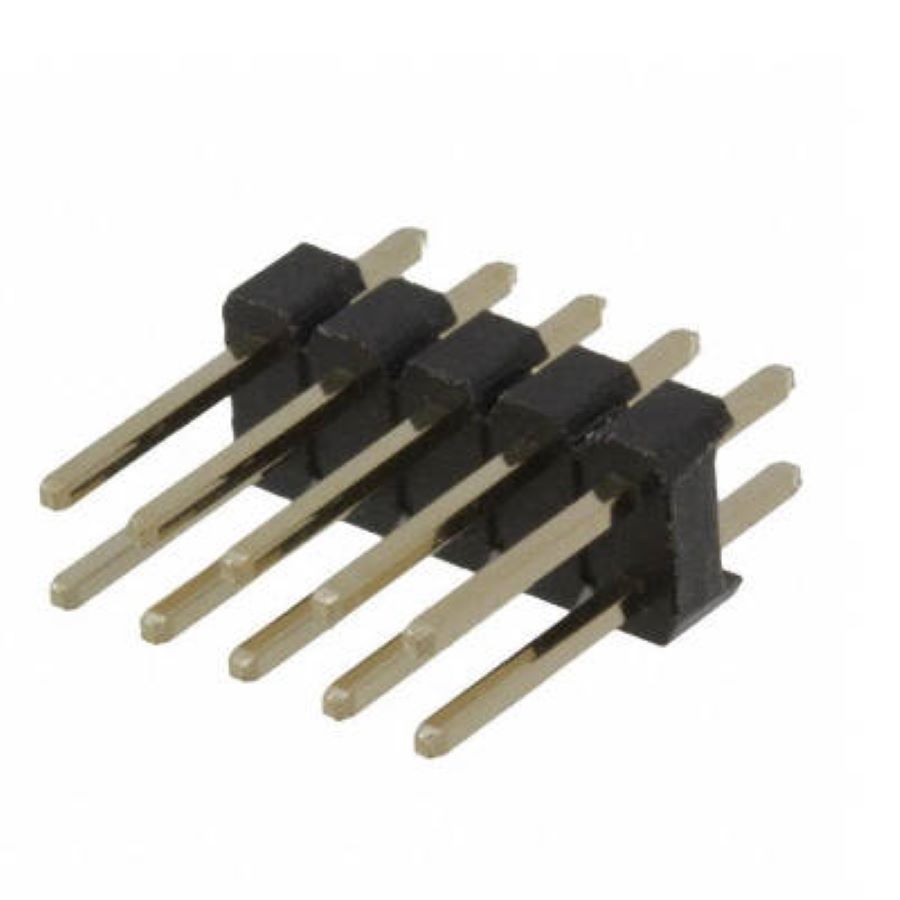

M20-9720545
Manufacturer:
Harwin
Mfr.Part #:
M20-9720545
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 13.05 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 7.0104 mm |
Stock: 891
Distributors
pcbx
pcbxUnit Price$0.28811
Ext.Price$0.28811
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28811 | $0.28811 |
| 10 | $0.24366 | $2.43660 |
| 25 | $0.23073 | $5.76825 |
| 50 | $0.21849 | $10.92450 |
| 100 | $0.20690 | $20.69000 |
| 300 | $0.19576 | $58.72800 |
| 500 | $0.18522 | $92.61000 |
| 1000 | $0.17526 | $175.26000 |
| 3000 | $0.16657 | $499.71000 |
| 5000 | $0.15831 | $791.55000 |
| 10000 | $0.15047 | $1504.70000 |
