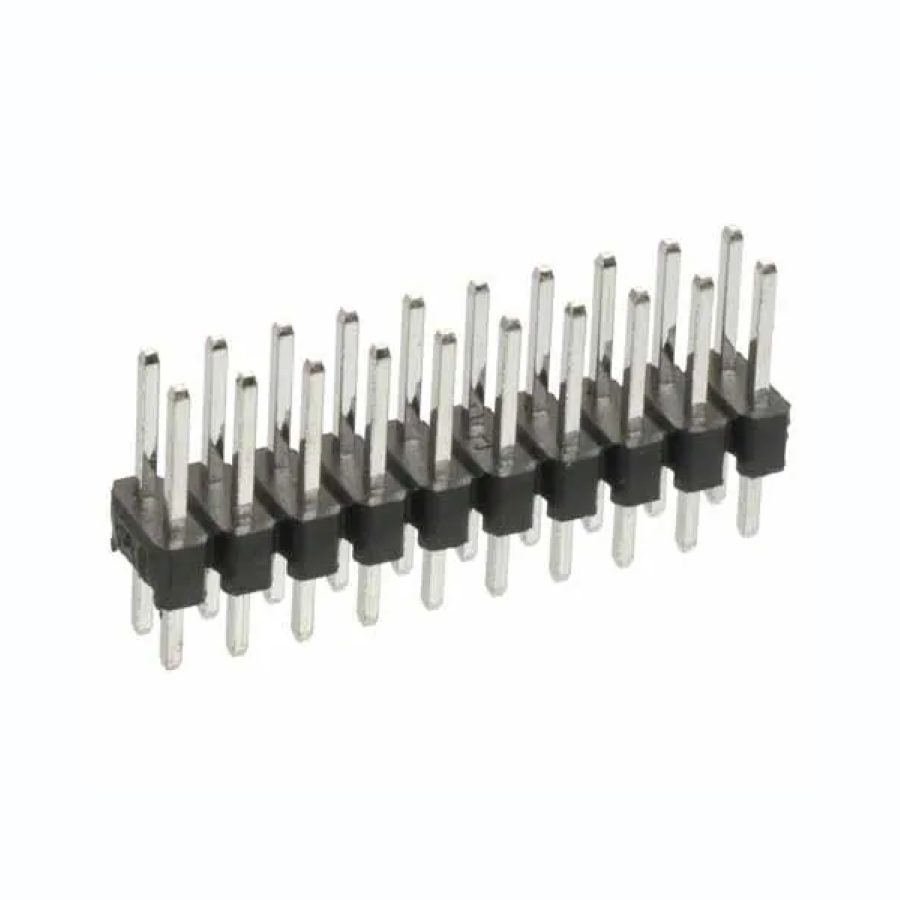

M20-9760342
Manufacturer:
Harwin
Mfr.Part #:
M20-9760342
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 750 V |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 5.7912 mm |
Stock: 1031
Distributors
pcbx
pcbxUnit Price$0.16927
Ext.Price$0.16927
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16927 | $0.16927 |
| 10 | $0.14363 | $1.43630 |
| 50 | $0.13251 | $6.62550 |
| 100 | $0.12226 | $12.22600 |
| 500 | $0.11199 | $55.99500 |
| 1000 | $0.10259 | $102.59000 |
| 3000 | $0.09233 | $276.99000 |
| 5000 | $0.08973 | $448.65000 |
| 10000 | $0.08720 | $872.00000 |
