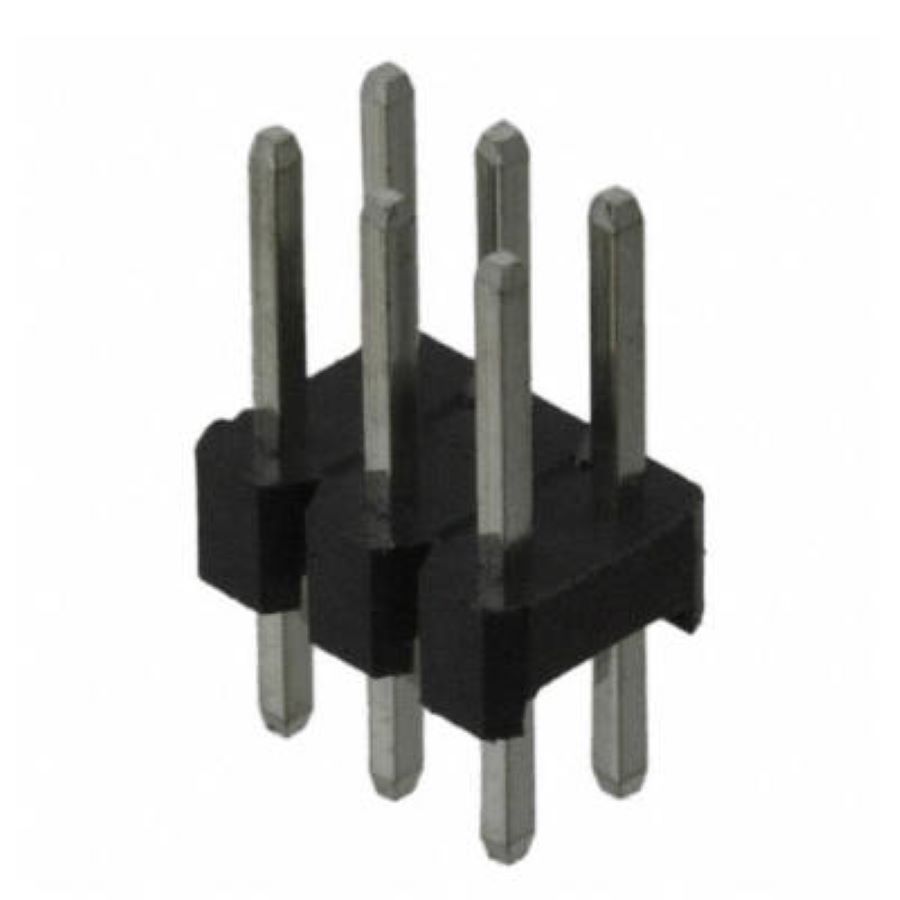

M20-9760346
Manufacturer:
Harwin
Mfr.Part #:
M20-9760346
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 750 V |
| Depth | 5.08 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Contact Mating Length | 5.7912 mm |
| Mating Post Length | 5.8 mm |
| Termination Post Length | 3.1 mm |
Stock: 2016
Distributors
pcbx
pcbxUnit Price$0.15047
Ext.Price$0.15047
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15047 | $0.15047 |
| 10 | $0.12567 | $1.25670 |
| 50 | $0.11589 | $5.79450 |
| 100 | $0.10687 | $10.68700 |
| 500 | $0.09795 | $48.97500 |
| 1000 | $0.08977 | $89.77000 |
| 3000 | $0.08387 | $251.61000 |
| 5000 | $0.08033 | $401.65000 |
| 10000 | $0.07694 | $769.40000 |
