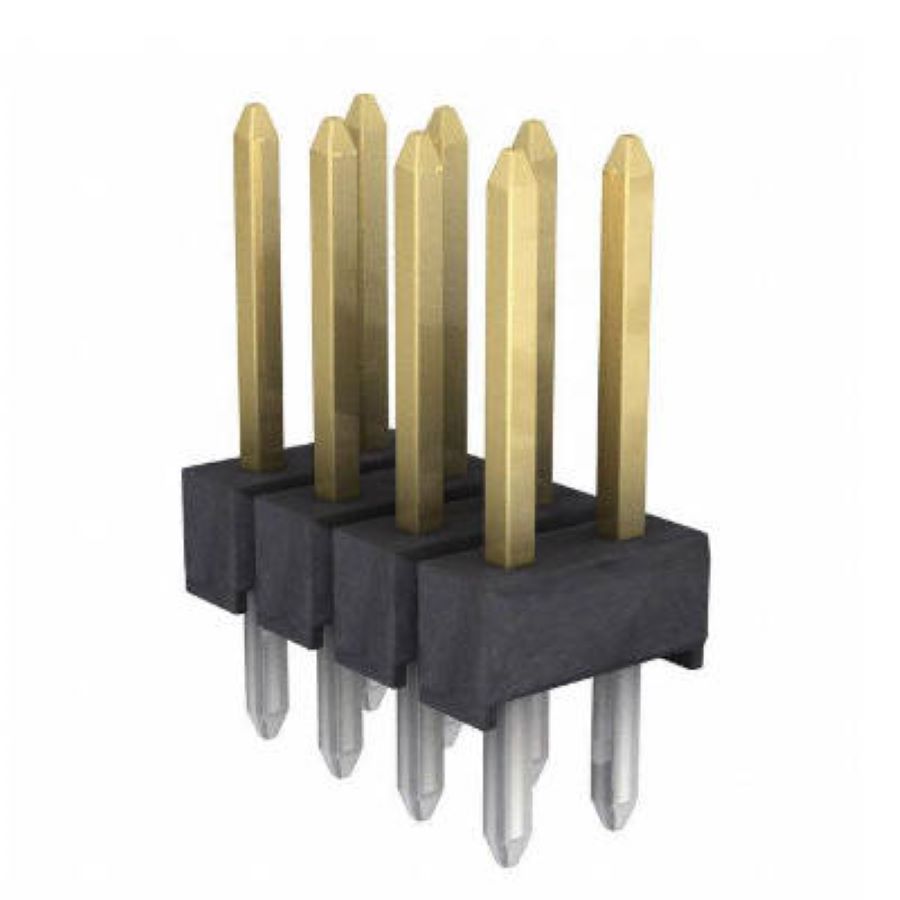

M20-9760442
Manufacturer:
Harwin
Mfr.Part #:
M20-9760442
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.16 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 750 V |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 8 |
| Connector Type | Male Pin |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 5.7912 mm |
| Mating Post Length | 5.8 mm |
| Termination Post Length | 3.1 mm |
Stock: 1250
Distributors
pcbx
pcbxUnit Price$0.21886
Ext.Price$0.21886
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21886 | $0.21886 |
| 10 | $0.18296 | $1.82960 |
| 50 | $0.16919 | $8.45950 |
| 100 | $0.15645 | $15.64500 |
| 500 | $0.14352 | $71.76000 |
| 1000 | $0.13166 | $131.66000 |
| 3000 | $0.11798 | $353.94000 |
| 5000 | $0.11539 | $576.95000 |
| 10000 | $0.11285 | $1128.50000 |
