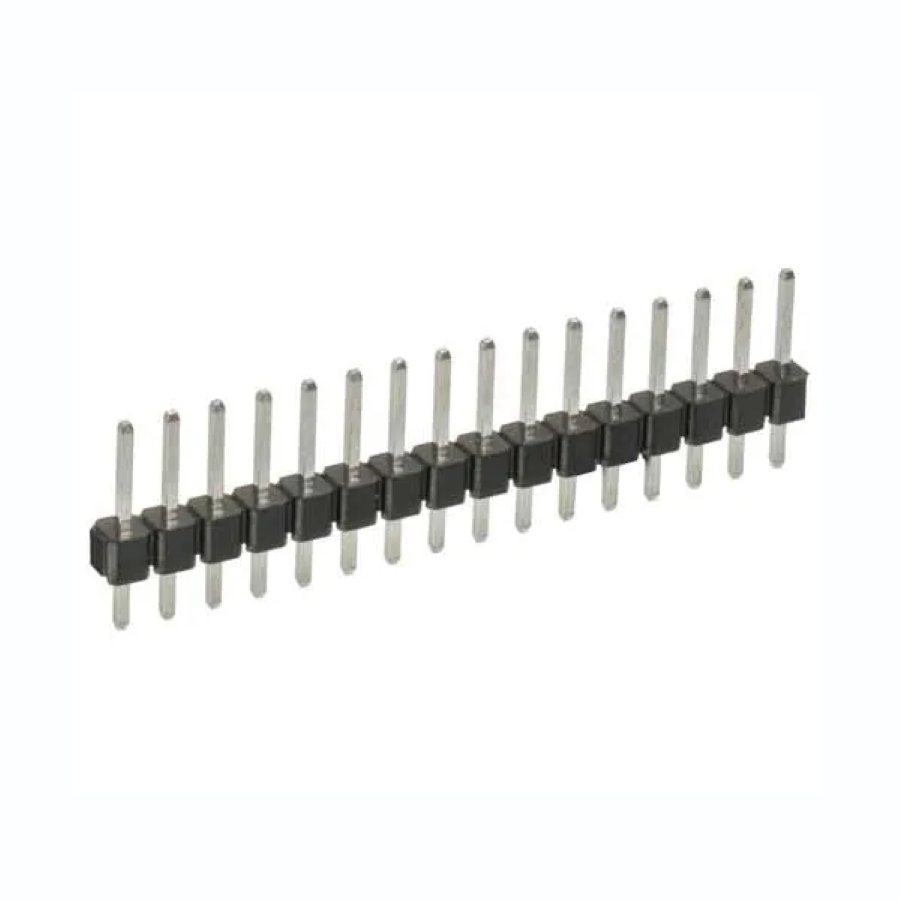

M20-9770446
Manufacturer:
Harwin
Mfr.Part #:
M20-9770446
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.16 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 750 V |
| Depth | 2.54 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Male Pin |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Contact Mating Length | 5.7912 mm |
| Mating Post Length | 5.8 mm |
| Termination Post Length | 3.1 mm |
Stock: 10437
Distributors
pcbx
pcbxUnit Price$0.10601
Ext.Price$0.10601
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10601 | $0.10601 |
| 10 | $0.09147 | $0.91470 |
| 50 | $0.08427 | $4.21350 |
| 100 | $0.07763 | $7.76300 |
| 500 | $0.06757 | $33.78500 |
| 1000 | $0.05882 | $58.82000 |
| 3000 | $0.05688 | $170.64000 |
| 5000 | $0.05500 | $275.00000 |
| 10000 | $0.05318 | $531.80000 |
