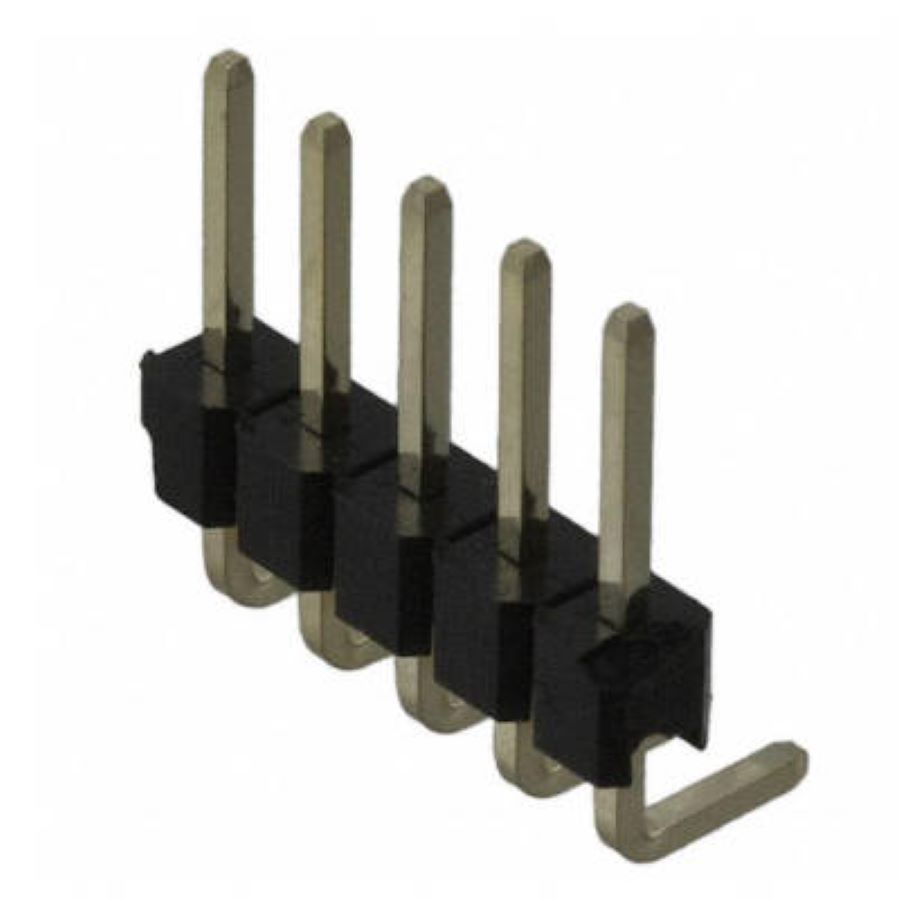

M20-9960545
Manufacturer:
Harwin
Mfr.Part #:
M20-9960545
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 750 V |
| Depth | 10.9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 5 |
| Connector Type | Male Pin |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| Mating Post Length | 5.8 mm |
| Termination Post Length | 3.1 mm |
Stock: 1429
Distributors
pcbx
pcbxUnit Price$0.23767
Ext.Price$0.23767
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23767 | $0.23767 |
| 10 | $0.19663 | $1.96630 |
| 50 | $0.17825 | $8.91250 |
| 100 | $0.16158 | $16.15800 |
| 500 | $0.13956 | $69.78000 |
| 1000 | $0.12054 | $120.54000 |
| 3000 | $0.11029 | $330.87000 |
| 5000 | $0.10504 | $525.20000 |
| 10000 | $0.10003 | $1000.30000 |
