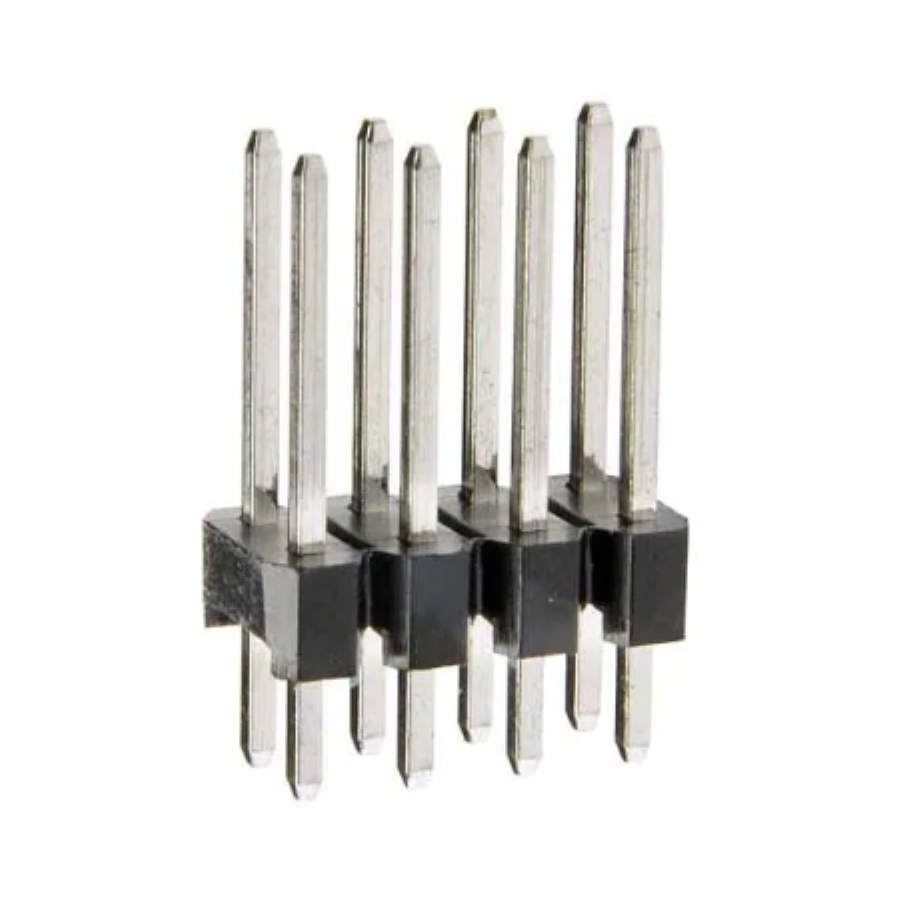

M20-9970345
Manufacturer:
Harwin
Mfr.Part #:
M20-9970345
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Contact Mating Length | 8.509 mm |
| Mating Post Length | 8.51 mm |
| Termination Post Length | 2.95 mm |
Stock: 503
Distributors
pcbx
pcbxUnit Price$0.28811
Ext.Price$0.28811
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28811 | $0.28811 |
| 10 | $0.23425 | $2.34250 |
| 25 | $0.21871 | $5.46775 |
| 50 | $0.20420 | $10.21000 |
| 100 | $0.19065 | $19.06500 |
| 300 | $0.17736 | $53.20800 |
| 500 | $0.16500 | $82.50000 |
| 1000 | $0.15560 | $155.60000 |
| 3000 | $0.14031 | $420.93000 |
| 5000 | $0.12653 | $632.65000 |
