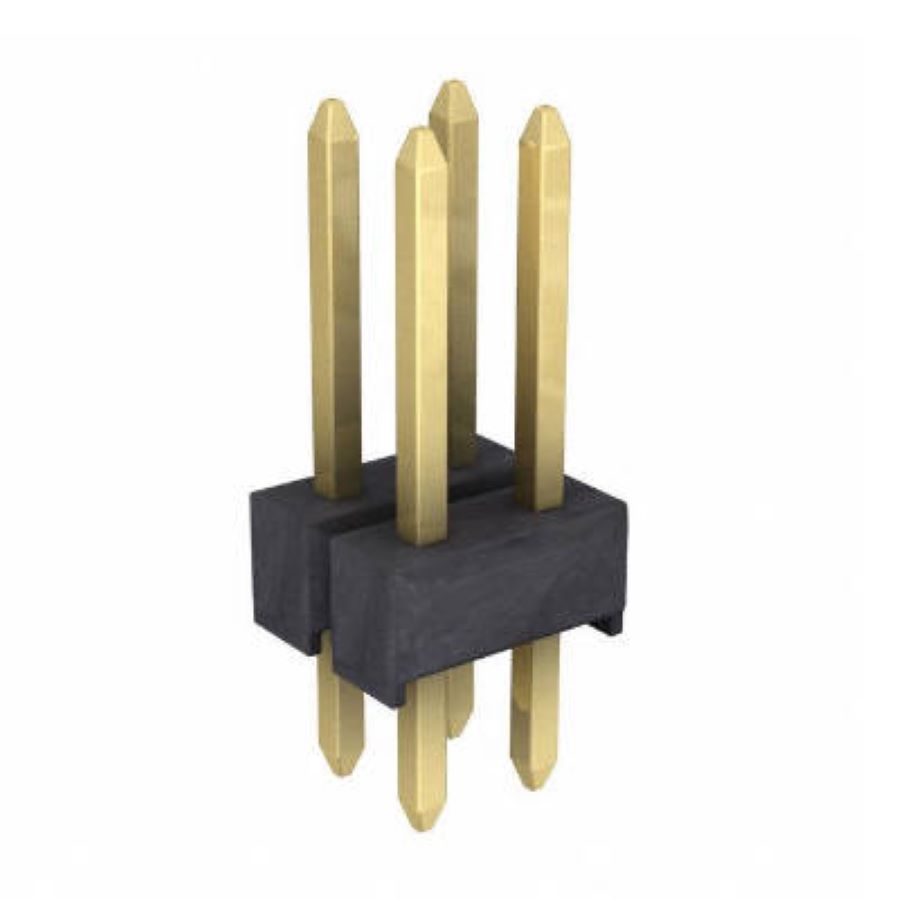

M20-9980245
Manufacturer:
Harwin
Mfr.Part #:
M20-9980245
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 0.238 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Male Pin |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| Mating Post Length | 5.8 mm |
| Termination Post Length | 3.1 mm |
