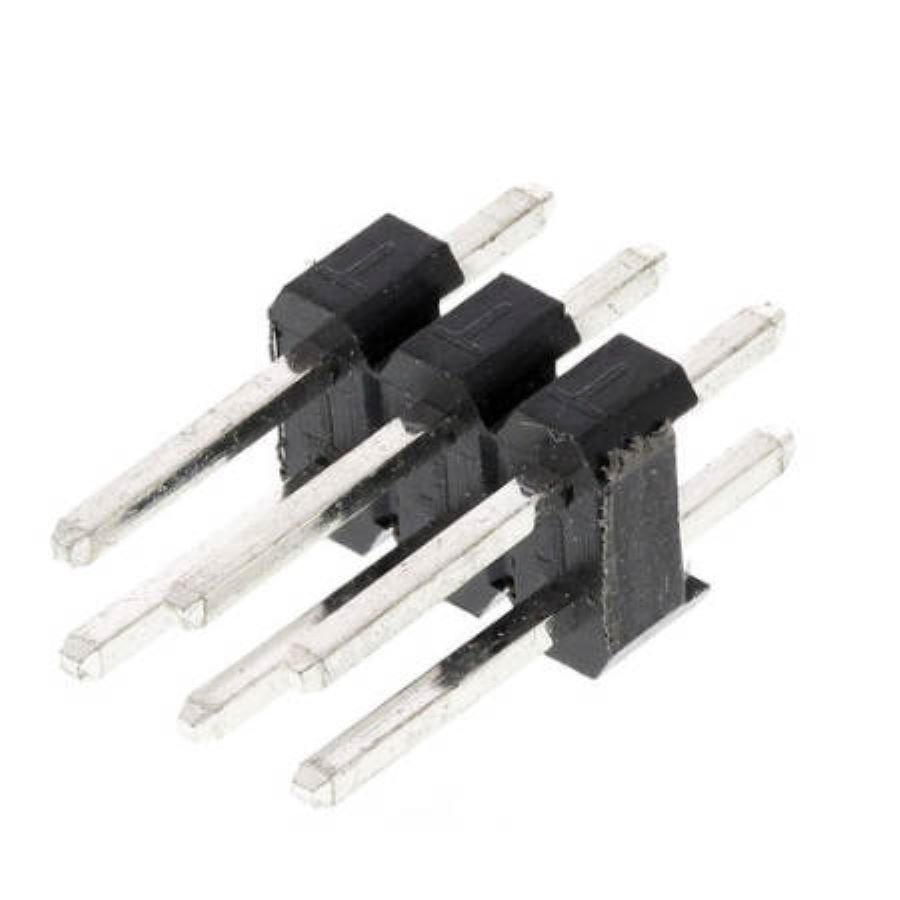

M20-9980346
Manufacturer:
Harwin
Mfr.Part #:
M20-9980346
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Cuttable Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 750 V |
| Length | 7.62 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 750 V |
| Height | 8.99 mm |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Bronze, Nickel, Tin |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Header, Cuttable |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
Stock: 14728
Distributors
pcbx
pcbxUnit Price$0.15047
Ext.Price$0.15047
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15047 | $0.15047 |
| 10 | $0.12910 | $1.29100 |
| 50 | $0.11886 | $5.94300 |
| 100 | $0.10943 | $10.94300 |
| 500 | $0.10052 | $50.26000 |
| 1000 | $0.09233 | $92.33000 |
| 3000 | $0.08259 | $247.77000 |
| 5000 | $0.08037 | $401.85000 |
| 10000 | $0.07822 | $782.20000 |
