M20-9980445
Manufacturer:
Harwin
Mfr.Part #:
M20-9980445
Datasheet:
Description:

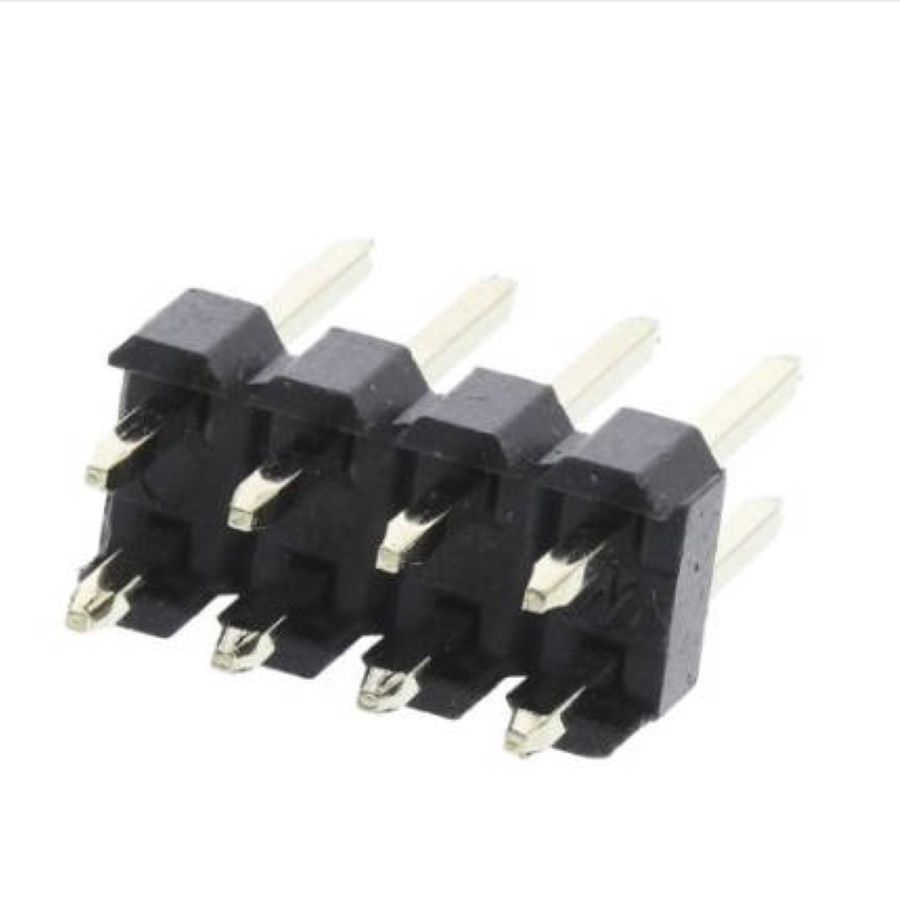

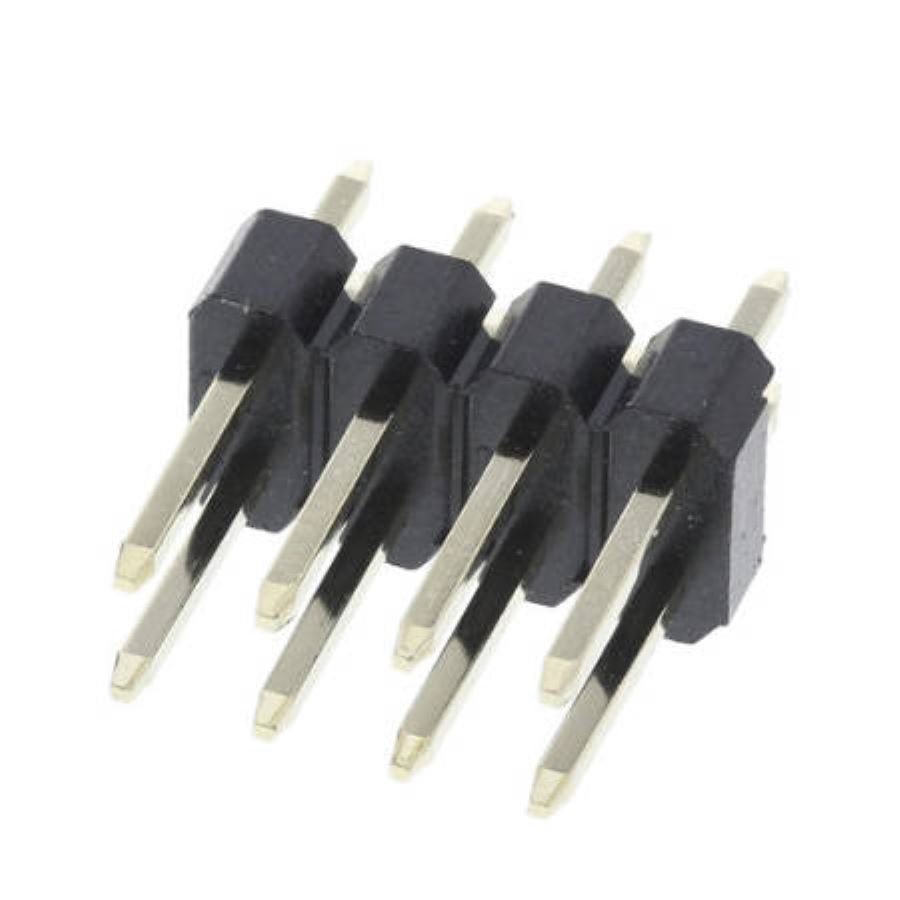

Headers and Wire Housings Through Hole Header, Cuttable Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 750 V |
| Length | 10.16 mm |
| Width | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 750 V |
| Height | 6.35 mm |
| Packaging | Bulk |
| Depth | 5.08 mm |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Weight | 45.359237 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass, Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 8 |
| Connector Type | Header, Cuttable |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
Stock: 2618
Distributors
pcbx
pcbxUnit Price$0.23169
Ext.Price$0.23169
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23169 | $0.23169 |
| 10 | $0.19493 | $1.94930 |
| 50 | $0.17981 | $8.99050 |
| 100 | $0.16586 | $16.58600 |
| 500 | $0.15296 | $76.48000 |
| 1000 | $0.14106 | $141.06000 |
| 3000 | $0.12567 | $377.01000 |
| 5000 | $0.12220 | $611.00000 |
| 10000 | $0.11883 | $1188.30000 |
