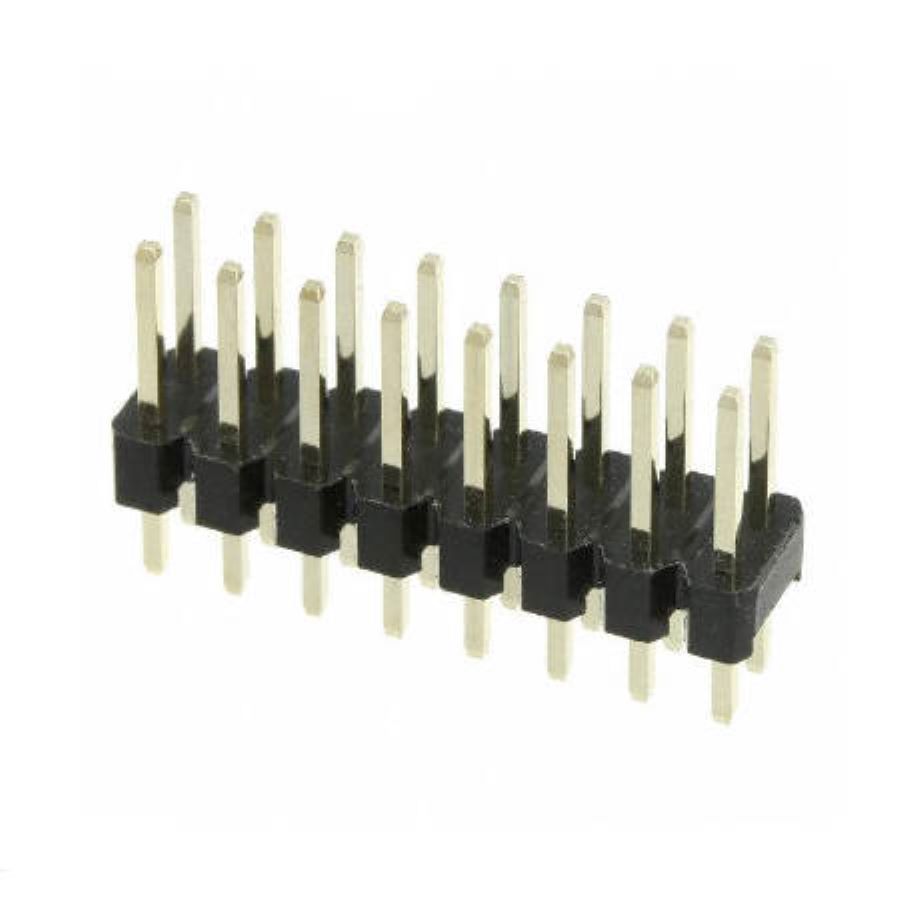

M20-9980845
Manufacturer:
Harwin
Mfr.Part #:
M20-9980845
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 20.32 mm |
| Width | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 750 V |
| Height | 2.54 mm |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Weight | 45.359237 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 16 |
| Connector Type | Male Pin |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| Mating Post Length | 6.1 mm |
| Termination Post Length | 3 mm |
Stock: 1079
Distributors
pcbx
pcbxUnit Price$0.42576
Ext.Price$0.42576
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.42576 | $0.42576 |
| 10 | $0.36163 | $3.61630 |
| 25 | $0.34270 | $8.56750 |
| 50 | $0.32476 | $16.23800 |
| 100 | $0.30777 | $30.77700 |
| 300 | $0.29154 | $87.46200 |
| 500 | $0.27617 | $138.08500 |
| 1000 | $0.26161 | $261.61000 |
| 3000 | $0.24746 | $742.38000 |
| 5000 | $0.23408 | $1170.40000 |
| 10000 | $0.22143 | $2214.30000 |
