M20-9980846
Manufacturer:
Harwin
Mfr.Part #:
M20-9980846
Datasheet:
Description:

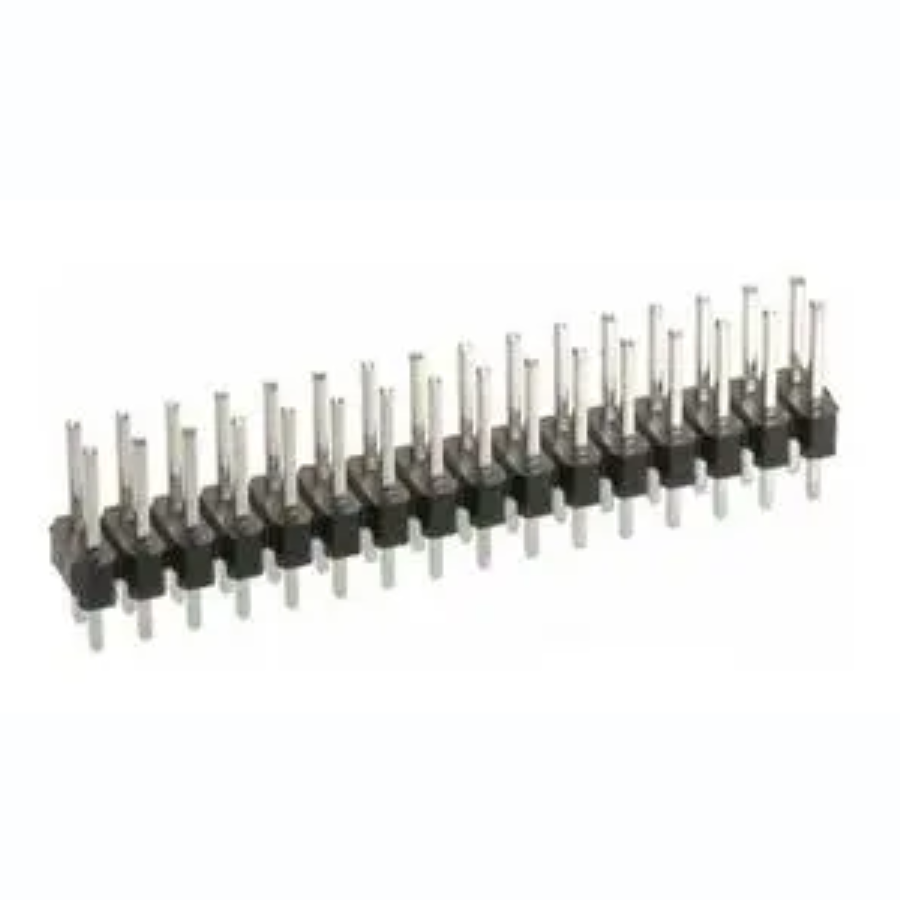

Headers and Wire Housings Through Hole Male Pin Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 750 V |
| Length | 20.32 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 750 V |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 16 |
| Connector Type | Male Pin |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
Stock: 788
Distributors
pcbx
pcbxUnit Price$0.38814
Ext.Price$0.38814
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38814 | $0.38814 |
| 10 | $0.32830 | $3.28300 |
| 25 | $0.31085 | $7.77125 |
| 50 | $0.29433 | $14.71650 |
| 100 | $0.27870 | $27.87000 |
| 300 | $0.26397 | $79.19100 |
| 500 | $0.25002 | $125.01000 |
| 1000 | $0.23681 | $236.81000 |
| 3000 | $0.22450 | $673.50000 |
| 5000 | $0.21283 | $1064.15000 |
| 10000 | $0.20176 | $2017.60000 |
