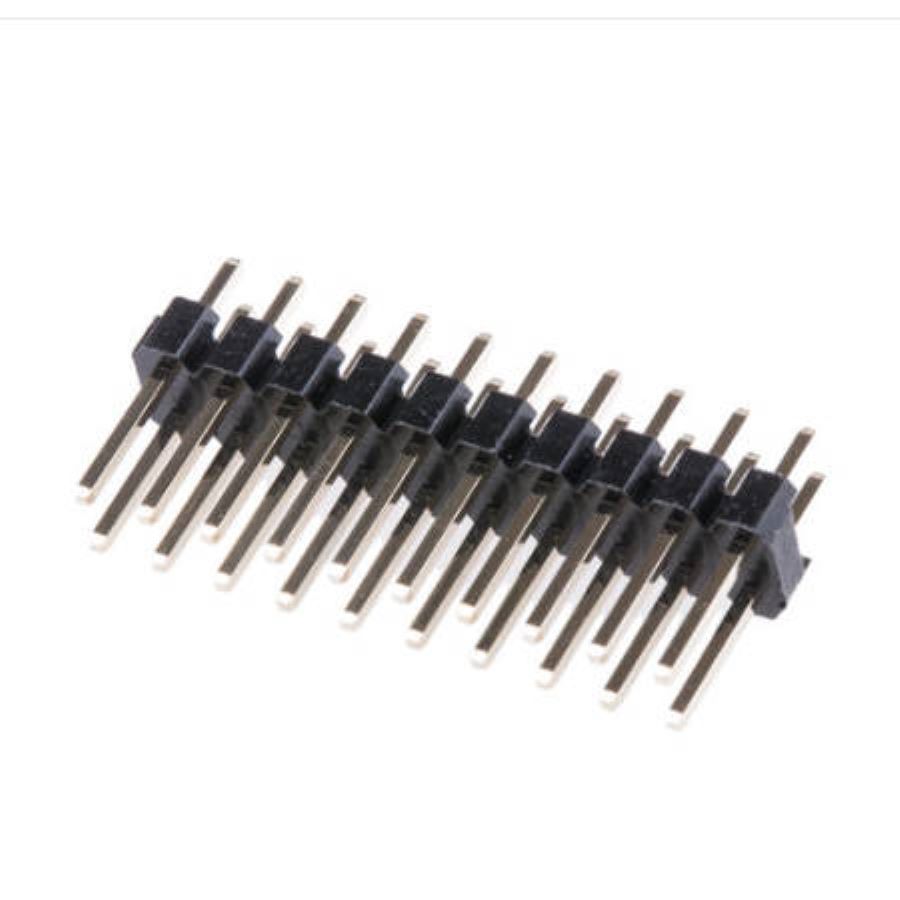

M20-9981045
Manufacturer:
Harwin
Mfr.Part #:
M20-9981045
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Cuttable Number of Positions:20 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 750 V |
| Length | 25.4 mm |
| Width | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 750 V |
| Height | 6.35 mm |
| Packaging | Bulk |
| Voltage Rating | 750 V |
| Depth | 5.08 mm |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Weight | 56.699046 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 20 |
| Connector Type | Header, Cuttable |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
Stock: 1462
Distributors
pcbx
pcbxUnit Price$0.57537
Ext.Price$0.57537
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.57537 | $0.57537 |
| 10 | $0.45567 | $4.55670 |
| 25 | $0.43665 | $10.91625 |
| 50 | $0.41842 | $20.92100 |
| 100 | $0.40096 | $40.09600 |
| 300 | $0.35821 | $107.46300 |
| 500 | $0.32078 | $160.39000 |
| 1000 | $0.28726 | $287.26000 |
