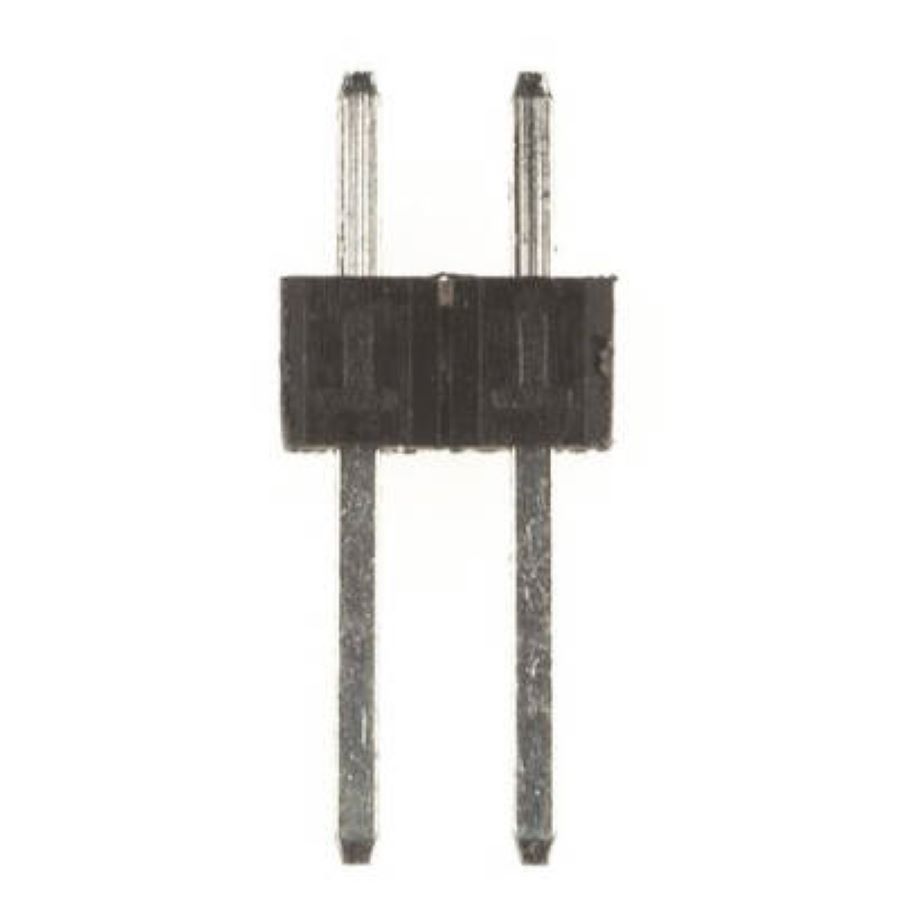

M20-9990245
Manufacturer:
Harwin
Mfr.Part #:
M20-9990245
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 750 V |
| Length | 5.08 mm |
| Width | 6.35 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 750 V |
| Height | 3.048 mm |
| Packaging | Bulk |
| Depth | 2.54 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 10 GΩ |
| Voltage | 50 V |
| REACH SVHC | No SVHC |
| Weight | 113.398093 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current | 3 A |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Working Voltage | 750 V |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| Mating Post Length | 6.1 mm |
| Termination Post Length | 3 mm |
Stock: 1196
Distributors
pcbx
pcbxUnit Price$0.10282
Ext.Price$0.10282
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10282 | $0.10282 |
| 10 | $0.09127 | $0.91270 |
| 50 | $0.08102 | $4.05100 |
| 100 | $0.07433 | $7.43300 |
| 500 | $0.06820 | $34.10000 |
| 1000 | $0.06257 | $62.57000 |
| 3000 | $0.05770 | $173.10000 |
| 5000 | $0.05321 | $266.05000 |
