M20-9990345
Manufacturer:
Harwin
Mfr.Part #:
M20-9990345
Datasheet:
Description:

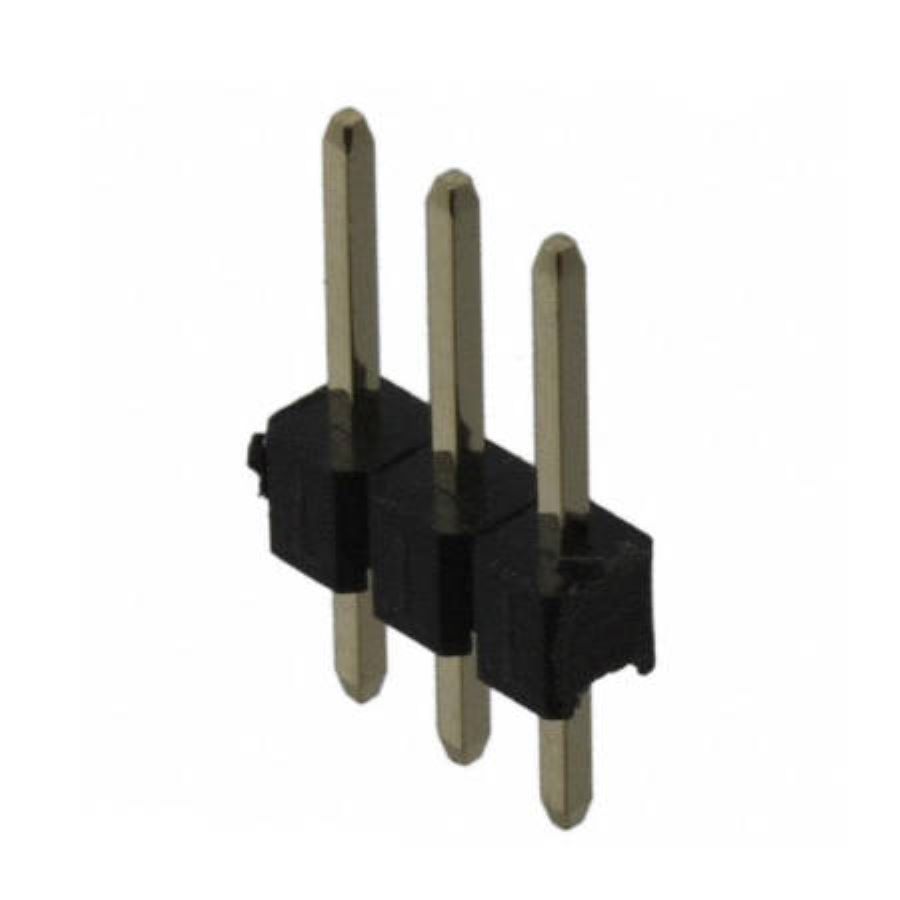

Headers and Wire Housings Through Hole Header, Cuttable Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Width | 6.35 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 750 V |
| Height | 3.175 mm |
| Packaging | Bulk |
| Depth | 2.54 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Weight | 174.009373 mg |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 3 |
| Connector Type | Header, Cuttable |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| Mating Post Length | 6.1 mm |
| Termination Post Length | 3 mm |
Stock: 39663
Distributors
pcbx
pcbxUnit Price$0.09382
Ext.Price$0.09382
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09382 | $0.09382 |
| 10 | $0.07755 | $0.77550 |
| 50 | $0.07148 | $3.57400 |
| 100 | $0.06588 | $6.58800 |
| 500 | $0.05880 | $29.40000 |
| 1000 | $0.05600 | $56.00000 |
| 3000 | $0.05290 | $158.70000 |
| 5000 | $0.04997 | $249.85000 |
| 10000 | $0.04759 | $475.90000 |
