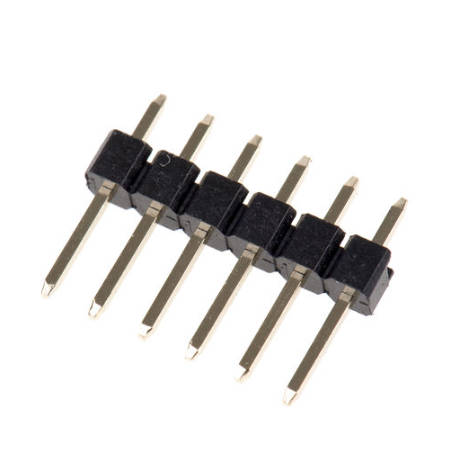

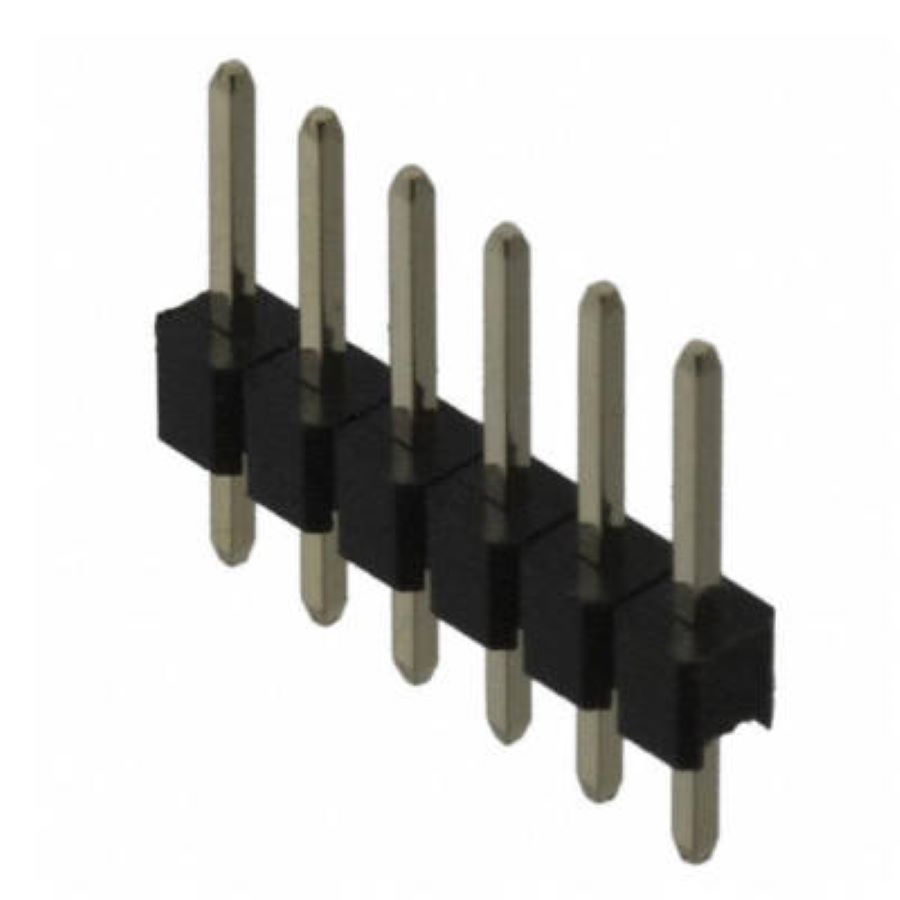

M20-9990645
Manufacturer:
Harwin
Mfr.Part #:
M20-9990645
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 750 V |
| Length | 15.24 mm |
| Width | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 750 V |
| Height | 3.175 mm |
| Packaging | Bulk |
| Depth | 2.54 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Weight | 45.359237 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass, Bronze, Gold, Nickel |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Insulation Material | Polyester |
| Housing Material | Nylon |
| Contact Resistance | 25 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| Mating Post Length | 6.1 mm |
| Termination Post Length | 3 mm |
Stock: 8862
Distributors
pcbx
pcbxUnit Price$0.17526
Ext.Price$0.17526
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17526 | $0.17526 |
| 10 | $0.15047 | $1.50470 |
| 50 | $0.13891 | $6.94550 |
| 100 | $0.12824 | $12.82400 |
| 500 | $0.11660 | $58.30000 |
| 1000 | $0.10601 | $106.01000 |
| 3000 | $0.09660 | $289.80000 |
| 5000 | $0.09444 | $472.20000 |
| 10000 | $0.09233 | $923.30000 |
