M20-9990646
Manufacturer:
Harwin
Mfr.Part #:
M20-9990646
Datasheet:
Description:

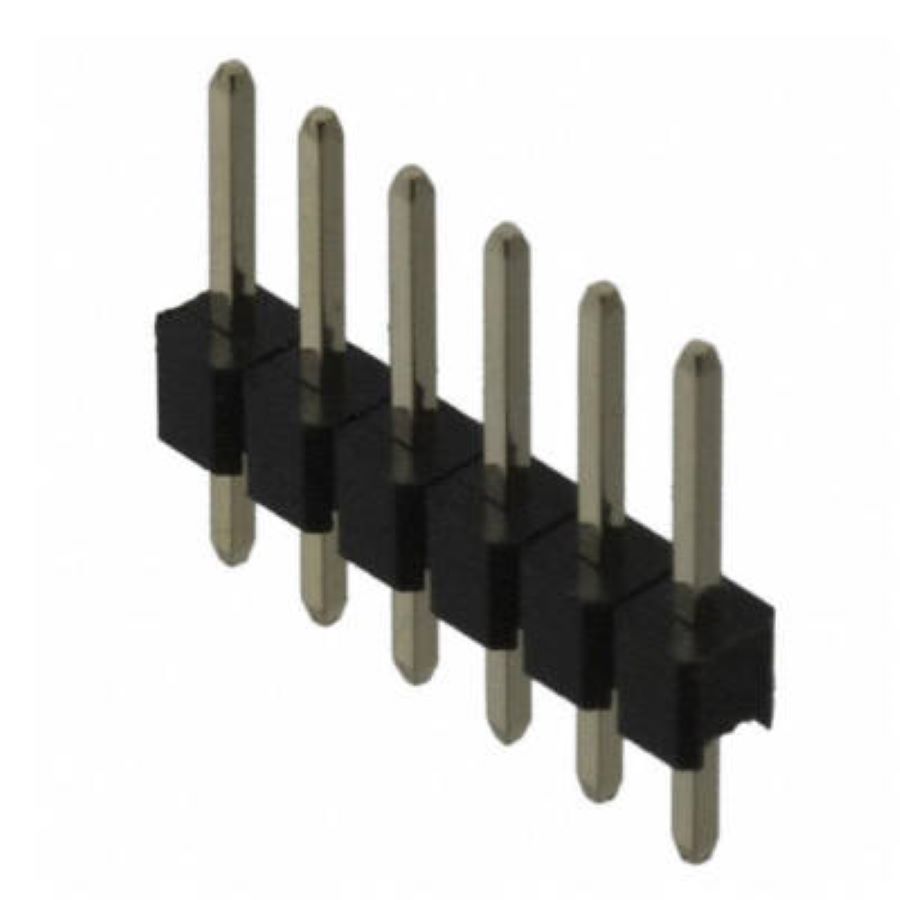

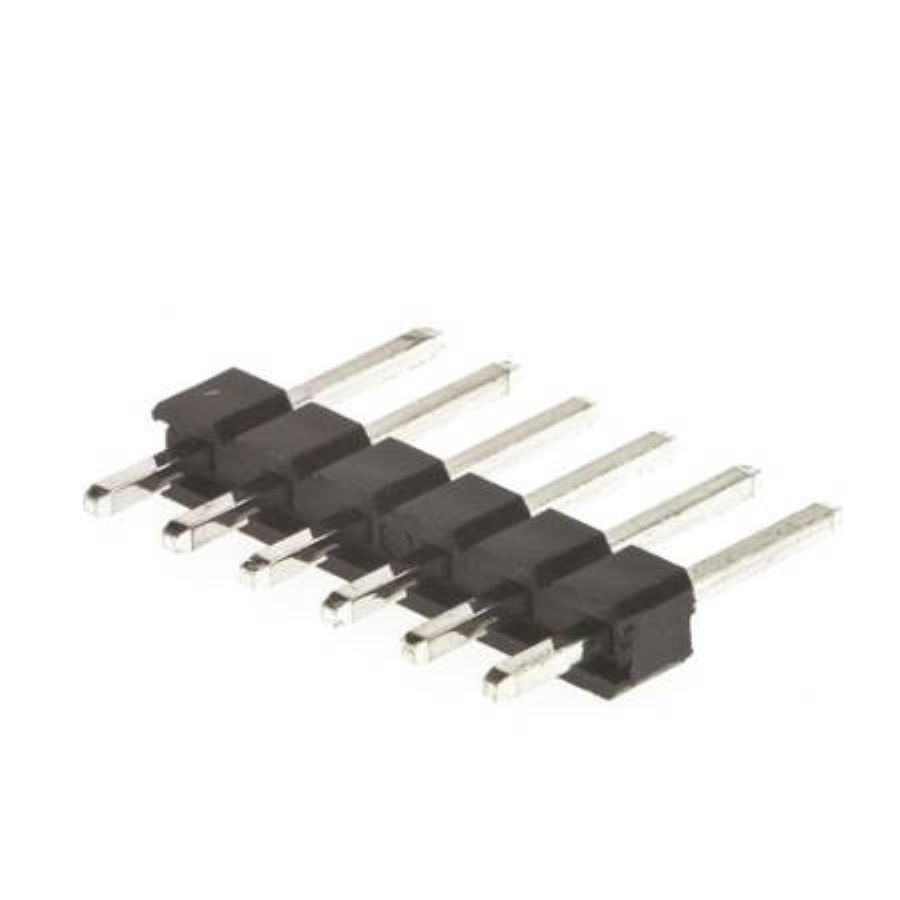

Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 750 V |
| Length | 15.24 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 750 V |
| Packaging | Bulk |
| Depth | 2.54 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Weight | 0.348 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| Mating Post Length | 6.1 mm |
| Termination Post Length | 3 mm |
Stock: 12849
Distributors
pcbx
pcbxUnit Price$0.15047
Ext.Price$0.15047
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15047 | $0.15047 |
| 10 | $0.12910 | $1.29100 |
| 50 | $0.11886 | $5.94300 |
| 100 | $0.10943 | $10.94300 |
| 500 | $0.09911 | $49.55500 |
| 1000 | $0.08977 | $89.77000 |
| 3000 | $0.08199 | $245.97000 |
| 5000 | $0.08008 | $400.40000 |
| 10000 | $0.07822 | $782.20000 |
