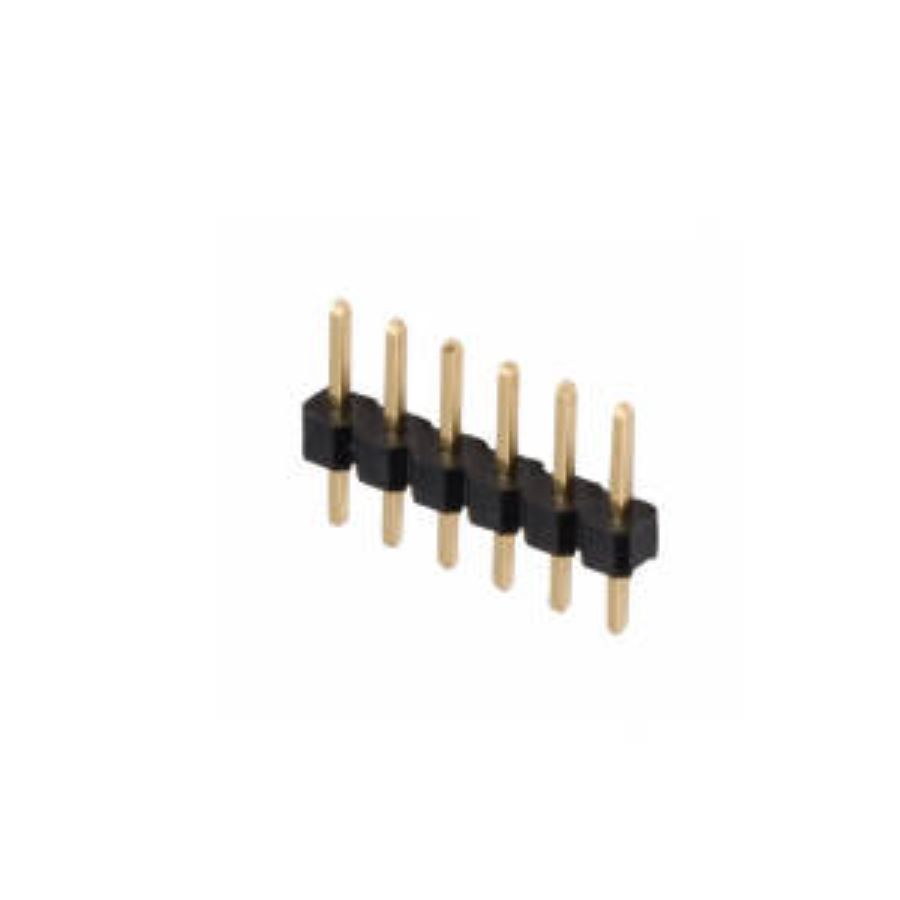

M22-2010605
Manufacturer:
Harwin
Mfr.Part #:
M22-2010605
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 12 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Packaging | Bulk |
| Voltage Rating | 650 V |
| Depth | 2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 3.5052 mm |
| Mating Post Length | 3.5 mm |
| Termination Post Length | 3.4 mm |
Stock: 3191
Distributors
pcbx
pcbxUnit Price$0.21886
Ext.Price$0.21886
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21886 | $0.21886 |
| 10 | $0.19236 | $1.92360 |
| 25 | $0.19065 | $4.76625 |
| 50 | $0.18145 | $9.07250 |
| 100 | $0.17270 | $17.27000 |
| 300 | $0.16680 | $50.04000 |
| 500 | $0.16110 | $80.55000 |
| 1000 | $0.15560 | $155.60000 |
| 3000 | $0.14106 | $423.18000 |
| 5000 | $0.13760 | $688.00000 |
| 10000 | $0.13423 | $1342.30000 |
