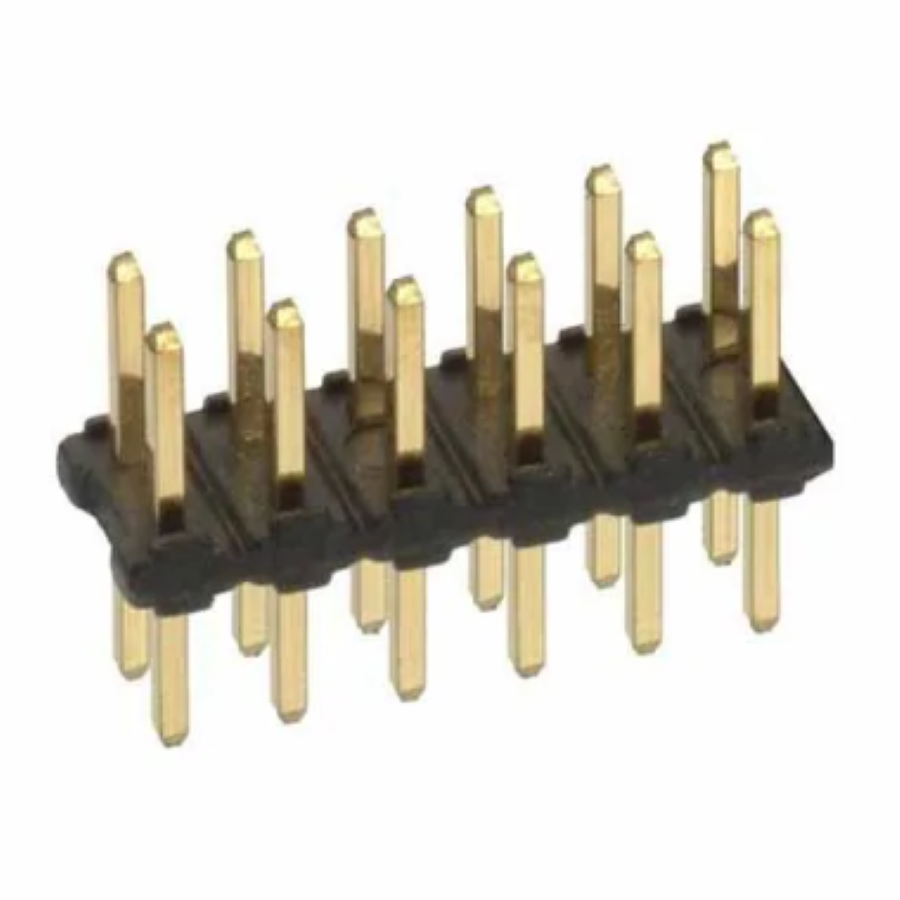

M22-2020305
Manufacturer:
Harwin
Mfr.Part #:
M22-2020305
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 8.4 mm |
| Width | 4.064 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Height | 1.016 mm |
| Packaging | Bulk |
| Depth | 4 mm |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Weight | 13.607771 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 3.5052 mm |
| Mating Post Length | 3.5 mm |
| Termination Post Length | 3.4 mm |
Stock: 877
Distributors
pcbx
pcbxUnit Price$0.25050
Ext.Price$0.25050
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25050 | $0.25050 |
| 10 | $0.21031 | $2.10310 |
| 50 | $0.19385 | $9.69250 |
| 100 | $0.17868 | $17.86800 |
| 500 | $0.16444 | $82.22000 |
| 1000 | $0.15133 | $151.33000 |
| 3000 | $0.13850 | $415.50000 |
| 5000 | $0.12967 | $648.35000 |
| 10000 | $0.12140 | $1214.00000 |
