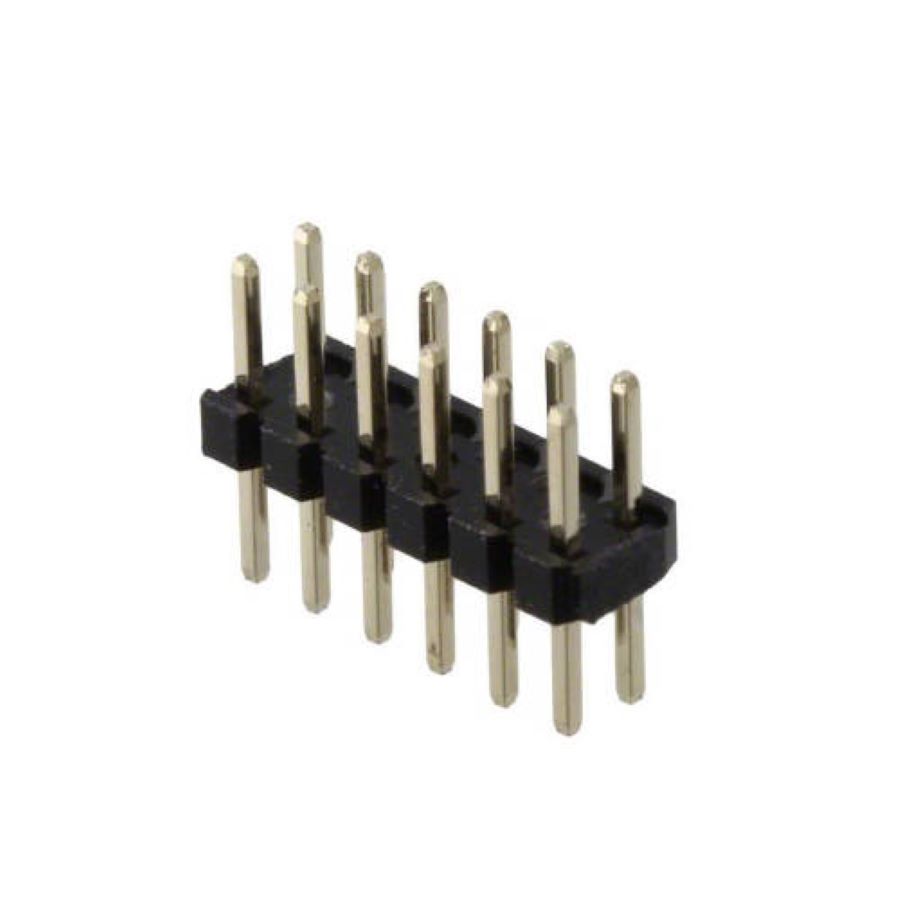

M22-2020605
Manufacturer:
Harwin
Mfr.Part #:
M22-2020605
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:12 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 12 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Packaging | Bulk |
| Depth | 4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 12 |
| Connector Type | Male Pin |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 3.5052 mm |
Stock: 698
Distributors
pcbx
pcbxUnit Price$0.41891
Ext.Price$0.41891
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41891 | $0.41891 |
| 10 | $0.40780 | $4.07800 |
| 25 | $0.38647 | $9.66175 |
| 50 | $0.36626 | $18.31300 |
| 100 | $0.34710 | $34.71000 |
| 300 | $0.32776 | $98.32800 |
| 500 | $0.30949 | $154.74500 |
| 1000 | $0.29495 | $294.95000 |
| 3000 | $0.27042 | $811.26000 |
| 5000 | $0.24793 | $1239.65000 |
