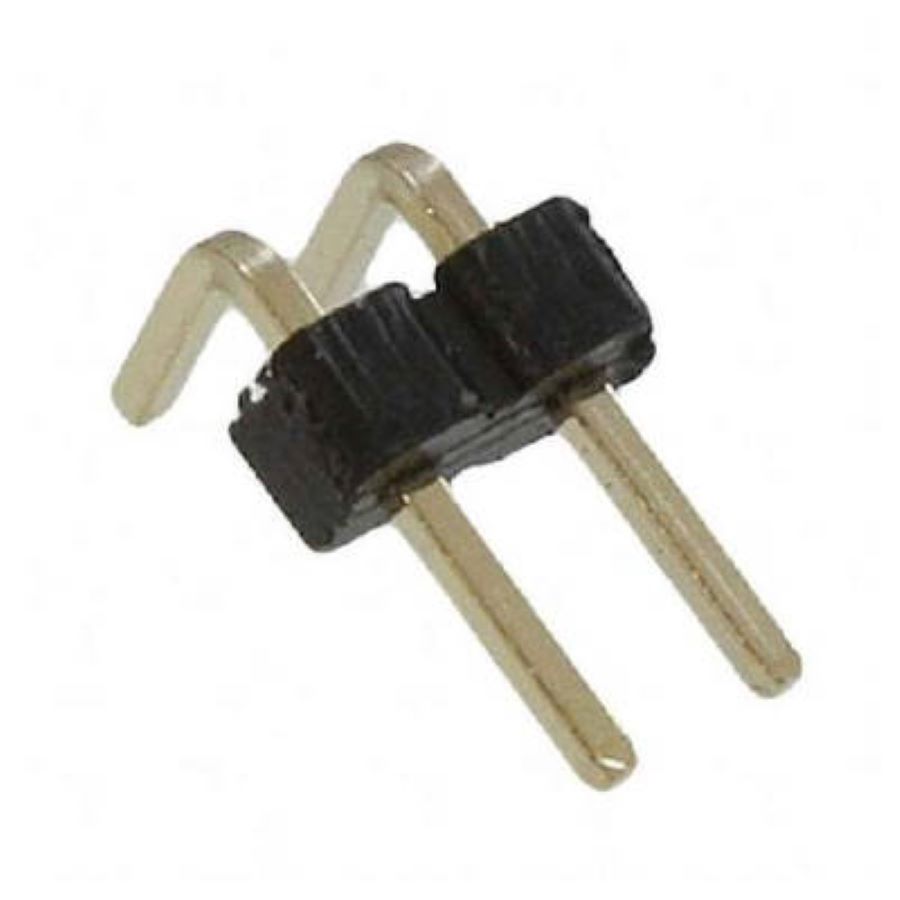

M22-2030205
Manufacturer:
Harwin
Mfr.Part #:
M22-2030205
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 4 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Packaging | Bulk |
| Depth | 6.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 10 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 3.5052 mm |
| Mating Post Length | 3.5 mm |
| Termination Post Length | 3 mm |
Stock: 4435
Distributors
pcbx
pcbxUnit Price$0.11285
Ext.Price$0.11285
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11285 | $0.11285 |
| 10 | $0.09575 | $0.95750 |
| 50 | $0.08860 | $4.43000 |
| 100 | $0.08199 | $8.19900 |
| 500 | $0.07236 | $36.18000 |
| 1000 | $0.06386 | $63.86000 |
| 3000 | $0.06130 | $183.90000 |
| 5000 | $0.05939 | $296.95000 |
| 10000 | $0.05754 | $575.40000 |
