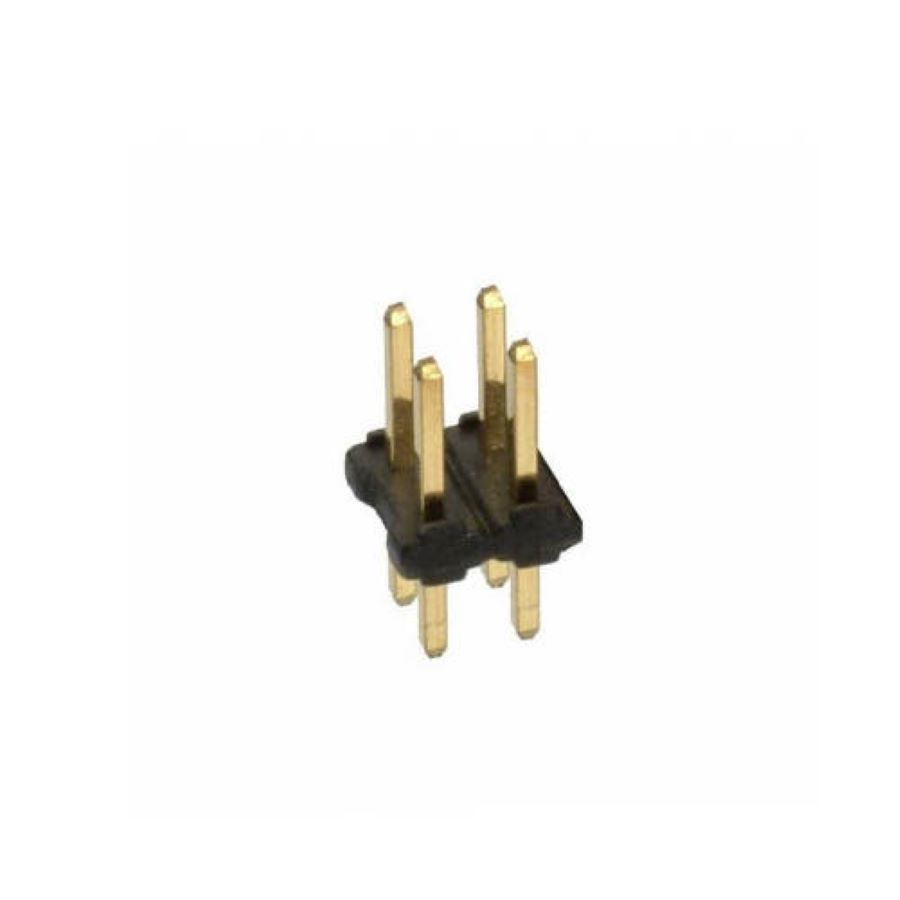

M22-2520205
Manufacturer:
Harwin
Mfr.Part #:
M22-2520205
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:4 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 4 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 650 V |
| Depth | 4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Male Pin |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 3.5052 mm |
Stock: 1248
Distributors
pcbx
pcbxUnit Price$0.21886
Ext.Price$0.21886
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21886 | $0.21886 |
| 10 | $0.17697 | $1.76970 |
| 50 | $0.15990 | $7.99500 |
| 100 | $0.14448 | $14.44800 |
| 500 | $0.13056 | $65.28000 |
| 1000 | $0.11798 | $117.98000 |
| 3000 | $0.09575 | $287.25000 |
