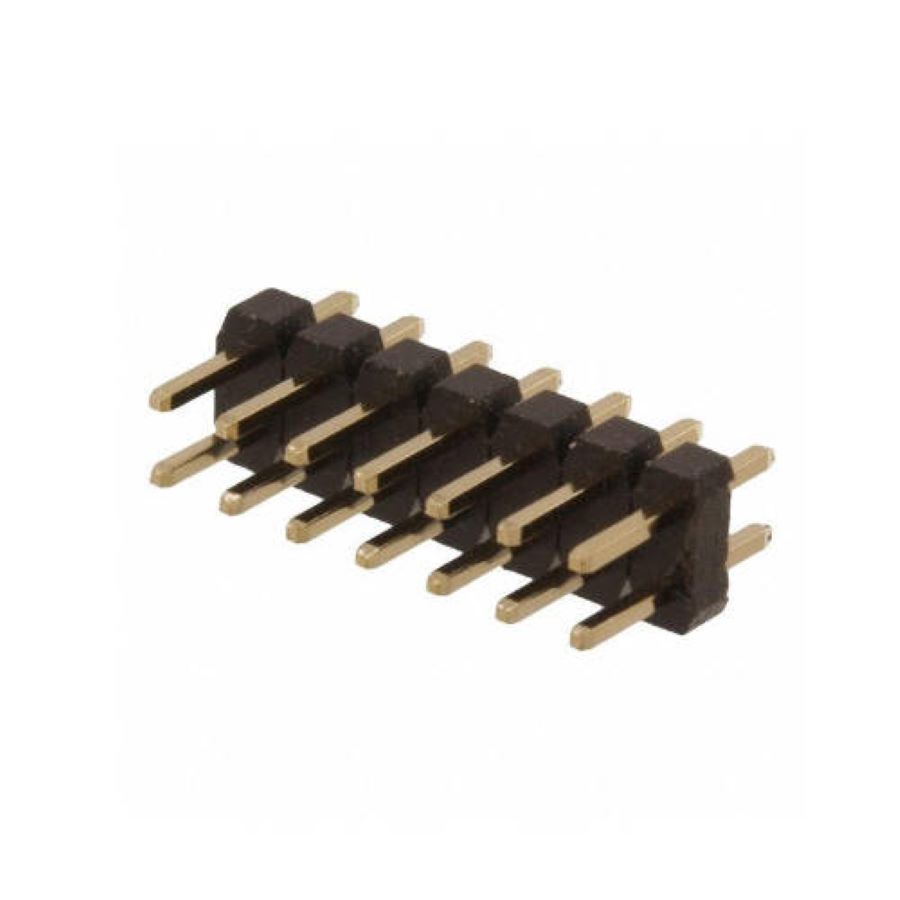

M22-2520705
Manufacturer:
Harwin
Mfr.Part #:
M22-2520705
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:14 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 14 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 650 V |
| Depth | 4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 14 |
| Connector Type | Male Pin |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Nylon |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Contact Mating Length | 3.5052 mm |
| Mating Post Length | 5.8 mm |
| Termination Post Length | 3.1 mm |
Stock: 508
Distributors
pcbx
pcbxUnit Price$0.61299
Ext.Price$0.61299
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.61299 | $0.61299 |
| 10 | $0.52150 | $5.21500 |
| 25 | $0.49384 | $12.34600 |
| 50 | $0.46765 | $23.38250 |
| 100 | $0.44286 | $44.28600 |
| 300 | $0.42274 | $126.82200 |
| 500 | $0.40353 | $201.76500 |
| 1000 | $0.38386 | $383.86000 |
| 3000 | $0.33940 | $1018.20000 |
| 5000 | $0.30008 | $1500.40000 |
