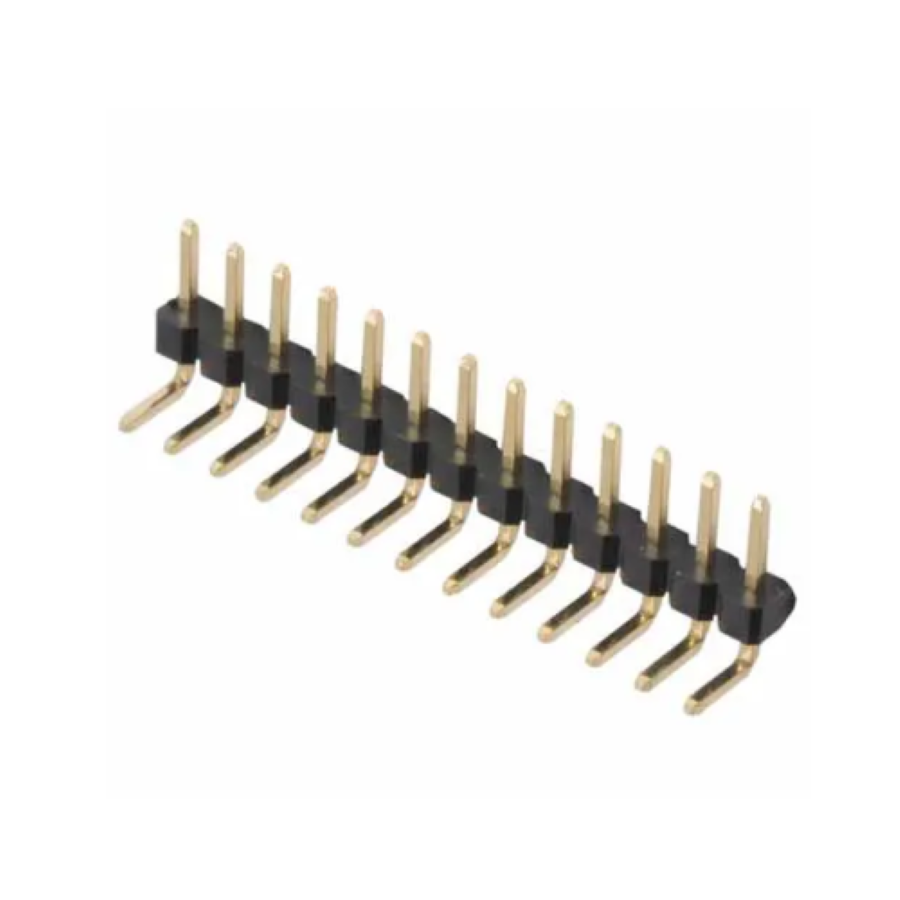

M22-2530605
Manufacturer:
Harwin
Mfr.Part #:
M22-2530605
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Cuttable Number of Positions:6 Pitch:2 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 650 V |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Connector Type | Header, Cuttable |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Mating Length | 3.5052 mm |
| Mating Post Length | 3.5 mm |
| Termination Post Length | 2.4 mm |
Stock: 1842
Distributors
pcbx
pcbxUnit Price$0.32573
Ext.Price$0.32573
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32573 | $0.32573 |
| 10 | $0.27700 | $2.77000 |
| 25 | $0.27357 | $6.83925 |
| 50 | $0.25361 | $12.68050 |
| 100 | $0.23510 | $23.51000 |
| 300 | $0.22236 | $66.70800 |
| 500 | $0.21031 | $105.15500 |
| 1000 | $0.20006 | $200.06000 |
| 3000 | $0.17644 | $529.32000 |
| 5000 | $0.15560 | $778.00000 |
