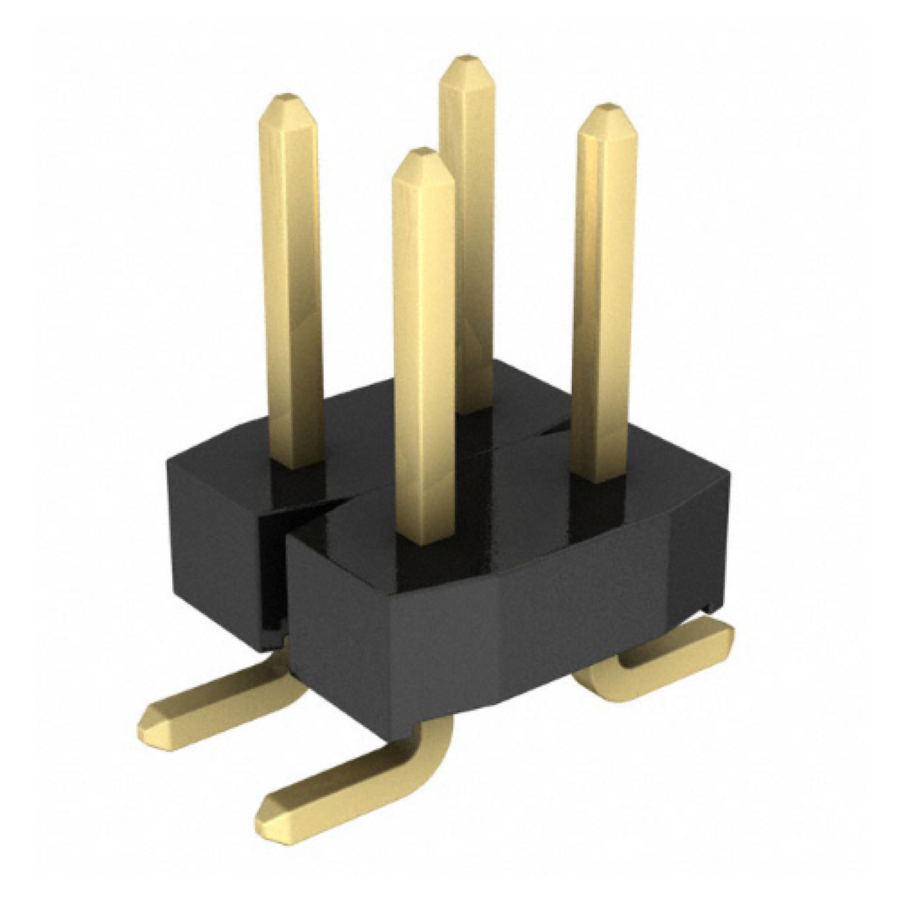

M22-5320205
Manufacturer:
Harwin
Mfr.Part #:
M22-5320205
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:4 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 4 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 5 mm |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 4 |
| Body Material | Nylon |
| Connector Type | Male Pin |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 3.5052 mm |
Stock: 1541
Distributors
pcbx
pcbxUnit Price$0.40010
Ext.Price$0.40010
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40010 | $0.40010 |
| 10 | $0.32573 | $3.25730 |
| 25 | $0.30409 | $7.60225 |
| 50 | $0.28389 | $14.19450 |
| 100 | $0.26503 | $26.50300 |
| 300 | $0.24688 | $74.06400 |
| 500 | $0.22997 | $114.98500 |
| 1000 | $0.21630 | $216.30000 |
| 3000 | $0.19753 | $592.59000 |
| 5000 | $0.18039 | $901.95000 |
