M22-5330205
Manufacturer:
Harwin
Mfr.Part #:
M22-5330205
Datasheet:
Description:

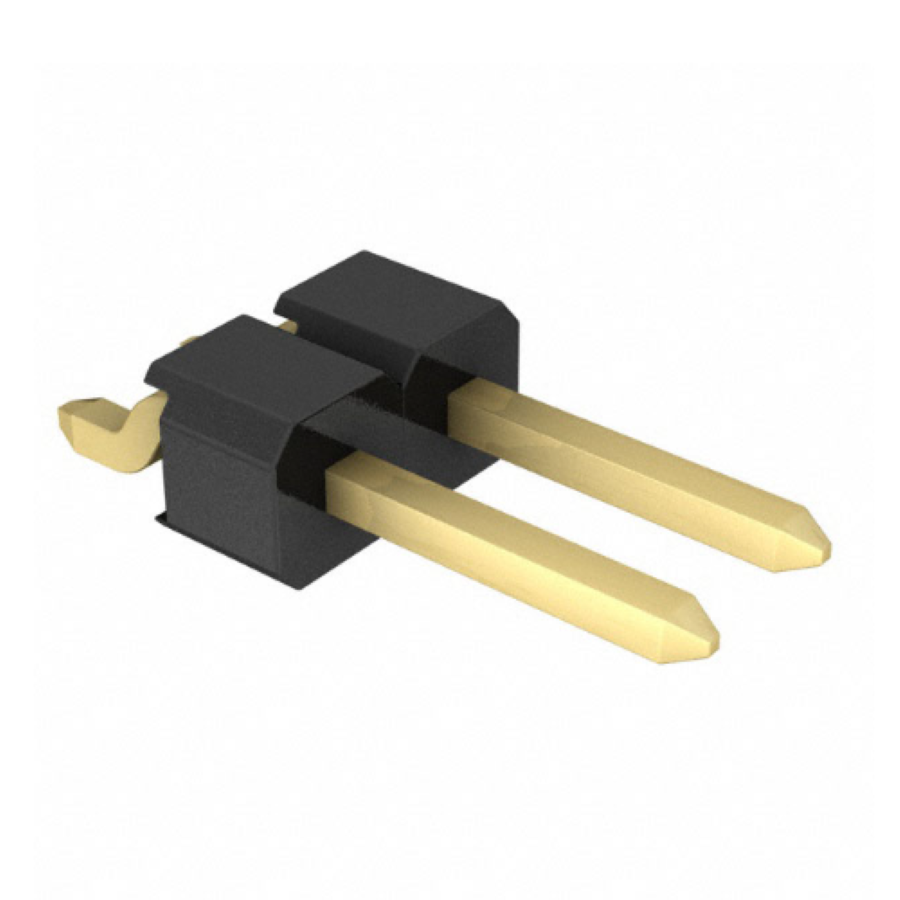

Headers and Wire Housings SMD/SMT Header, Cuttable Number of Positions:2 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 4 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 8.6 mm |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Max Current Rating | 1 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| Connector Type | Header, Cuttable |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 4.191 mm |
| Mating Post Length | 4.2 mm |
Stock: 1221
Distributors
pcbx
pcbxUnit Price$0.25050
Ext.Price$0.25050
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25050 | $0.25050 |
| 10 | $0.20262 | $2.02620 |
| 50 | $0.18332 | $9.16600 |
| 100 | $0.16586 | $16.58600 |
| 500 | $0.15262 | $76.31000 |
| 1000 | $0.14044 | $140.44000 |
| 3000 | $0.12923 | $387.69000 |
| 5000 | $0.11892 | $594.60000 |
| 10000 | $0.10943 | $1094.30000 |
