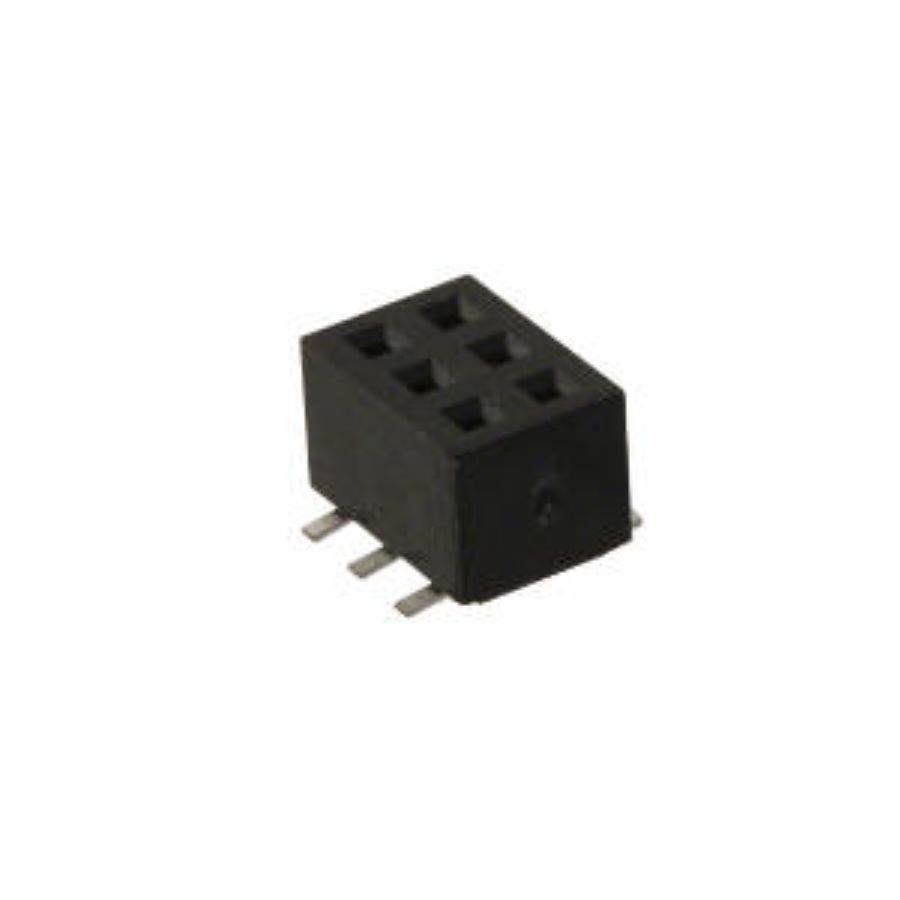

M22-6340342
Manufacturer:
Harwin
Mfr.Part #:
M22-6340342
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle, Bottom or Top Entry Number of Positions:6 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 6.5 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 4.6 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Number of Contacts | 6 |
| Body Material | Nylon |
| Connector Type | Receptacle, Bottom or Top Entry |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Polyamide |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 379
Distributors
pcbx
pcbxUnit Price$0.64462
Ext.Price$0.64462
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.64462 | $0.64462 |
| 10 | $0.63180 | $6.31800 |
| 25 | $0.44970 | $11.24250 |
| 50 | $0.42929 | $21.46450 |
| 100 | $0.40980 | $40.98000 |
| 300 | $0.39120 | $117.36000 |
| 500 | $0.37344 | $186.72000 |
| 1000 | $0.35649 | $356.49000 |
| 3000 | $0.34031 | $1020.93000 |
| 5000 | $0.32487 | $1624.35000 |
