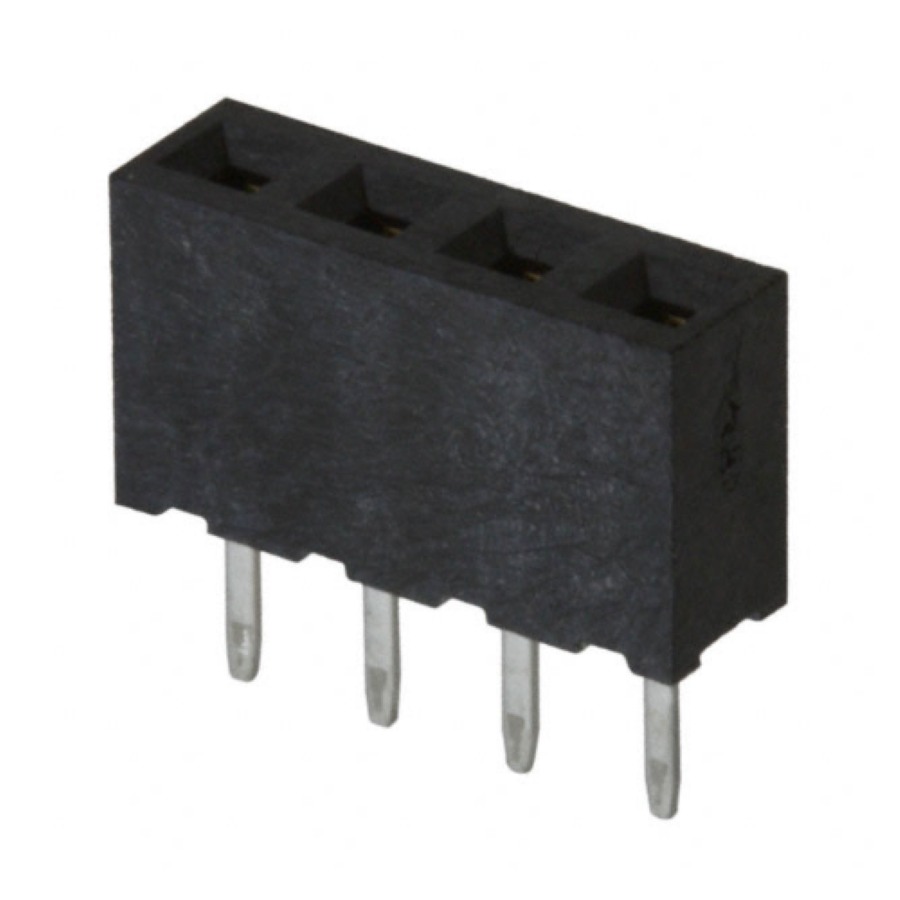

M22-7130642
Manufacturer:
Harwin
Mfr.Part #:
M22-7130642
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:6 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 12 mm |
| Width | 450 µm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.4 mm |
| Packaging | Tube |
| Voltage Rating | 500 V |
| Depth | 2.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Number of Contacts | 6 |
| Connector Type | Receptacle |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 3529
Distributors
pcbx
pcbxUnit Price$0.82618
Ext.Price$0.82618
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.82618 | $0.82618 |
| 10 | $0.77392 | $7.73920 |
| 25 | $0.72497 | $18.12425 |
| 50 | $0.67912 | $33.95600 |
| 100 | $0.63617 | $63.61700 |
| 300 | $0.59593 | $178.77900 |
| 500 | $0.55824 | $279.12000 |
| 1000 | $0.52293 | $522.93000 |
| 3000 | $0.48985 | $1469.55000 |
| 5000 | $0.45887 | $2294.35000 |
| 10000 | $0.42985 | $4298.50000 |
