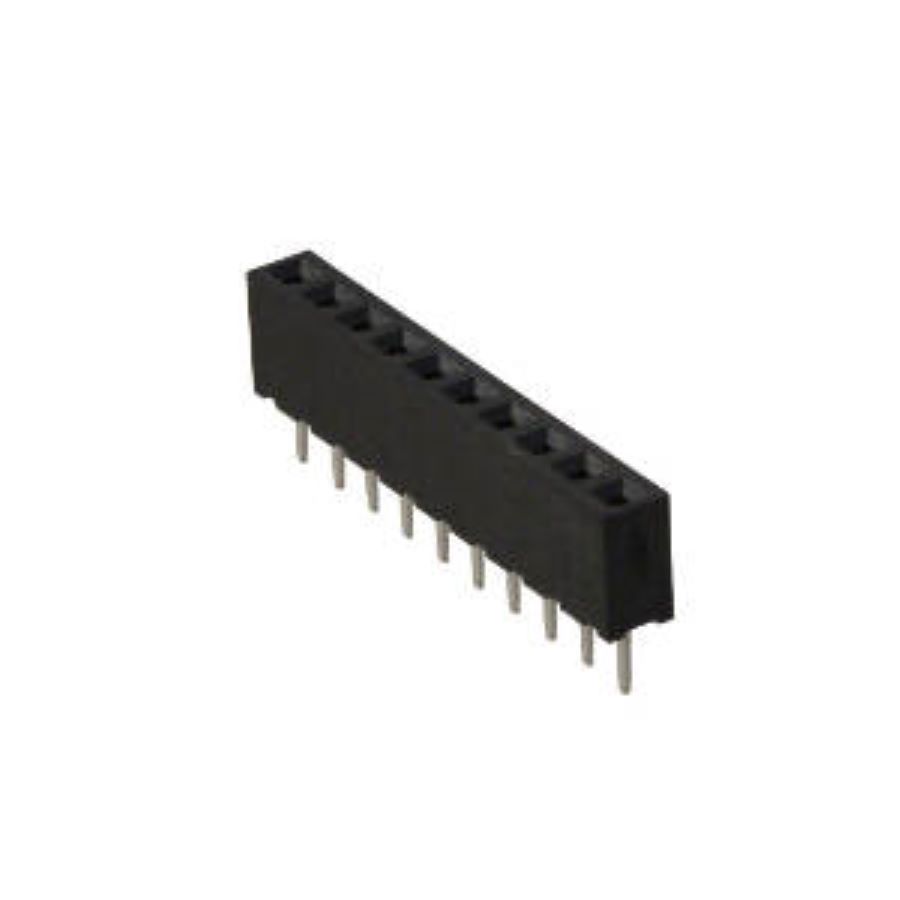

M22-7131042
Manufacturer:
Harwin
Mfr.Part #:
M22-7131042
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:10 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Width | 450 µm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.4 mm |
| Packaging | Tube |
| Voltage Rating | 500 V |
| Depth | 2.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Number of Contacts | 10 |
| Connector Type | Receptacle |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 9248
Distributors
pcbx
pcbxUnit Price$1.10115
Ext.Price$1.10115
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.10115 | $1.10115 |
| 10 | $1.05755 | $10.57550 |
| 25 | $1.01993 | $25.49825 |
| 50 | $0.92501 | $46.25050 |
| 100 | $0.83892 | $83.89200 |
| 300 | $0.76084 | $228.25200 |
| 500 | $0.69003 | $345.01500 |
| 1000 | $0.62581 | $625.81000 |
