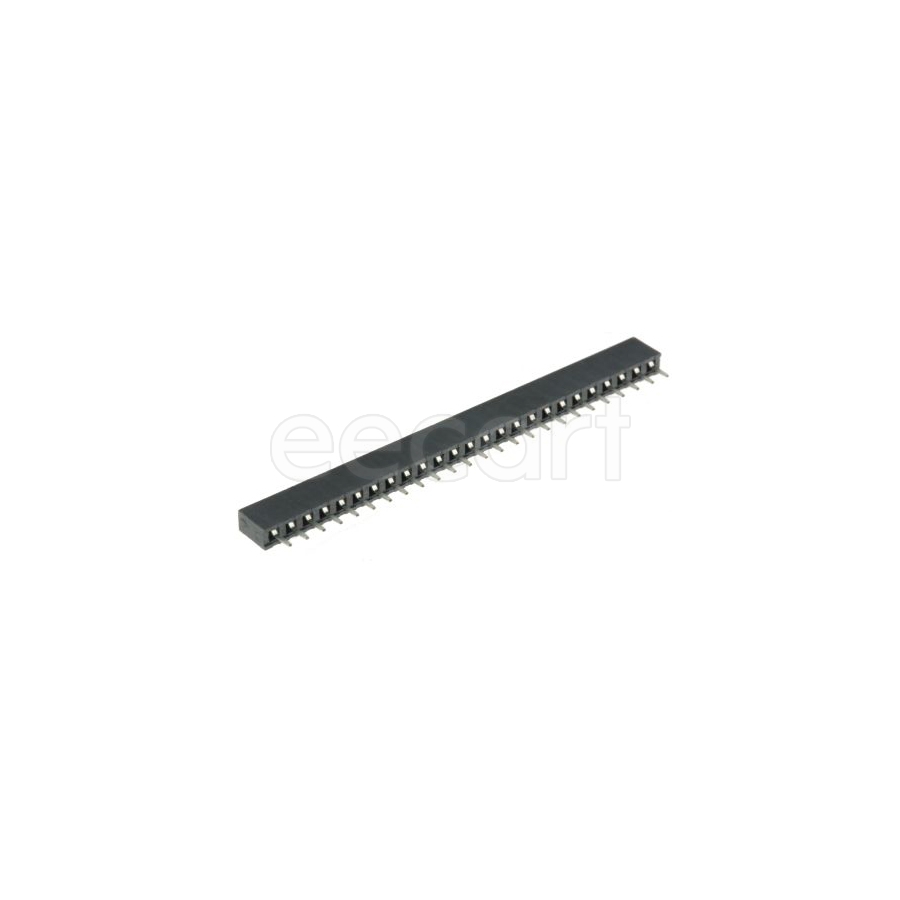

M22-7132542
Manufacturer:
Harwin
Mfr.Part #:
M22-7132542
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:25 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 50 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 500 V |
| Depth | 2.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 25 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 25 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 500 V |
| Housing Color | Black |
| Contact Gender | Female |
| Mating Post Length | 5.8 mm |
| Termination Post Length | 3.1 mm |
Stock: 291
Distributors
pcbx
pcbxUnit Price$2.32797
Ext.Price$2.32797
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.32797 | $2.32797 |
| 10 | $2.07150 | $20.71500 |
| 25 | $1.94672 | $48.66800 |
| 50 | $1.82945 | $91.47250 |
| 100 | $1.71925 | $171.92500 |
| 300 | $1.61568 | $484.70400 |
| 500 | $1.51835 | $759.17500 |
| 1000 | $1.42687 | $1426.87000 |
