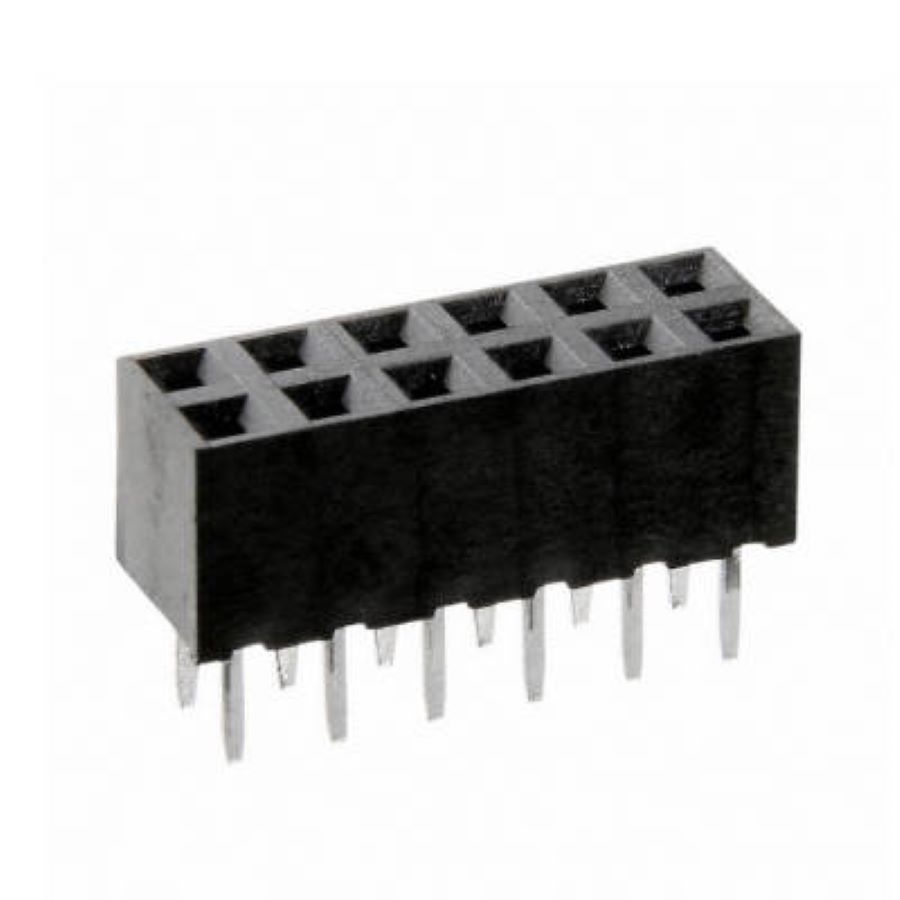

M22-7140542
Manufacturer:
Harwin
Mfr.Part #:
M22-7140542
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:10 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Width | 450 µm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.4 mm |
| Packaging | Tube |
| Depth | 4 mm |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 10 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 564
Distributors
pcbx
pcbxUnit Price$1.01381
Ext.Price$1.01381
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.01381 | $1.01381 |
| 10 | $0.94984 | $9.49840 |
| 25 | $0.88990 | $22.24750 |
| 50 | $0.83375 | $41.68750 |
| 100 | $0.78114 | $78.11400 |
| 300 | $0.73185 | $219.55500 |
| 500 | $0.68567 | $342.83500 |
| 1000 | $0.64240 | $642.40000 |
| 3000 | $0.60186 | $1805.58000 |
| 5000 | $0.56388 | $2819.40000 |
| 10000 | $0.52831 | $5283.10000 |
