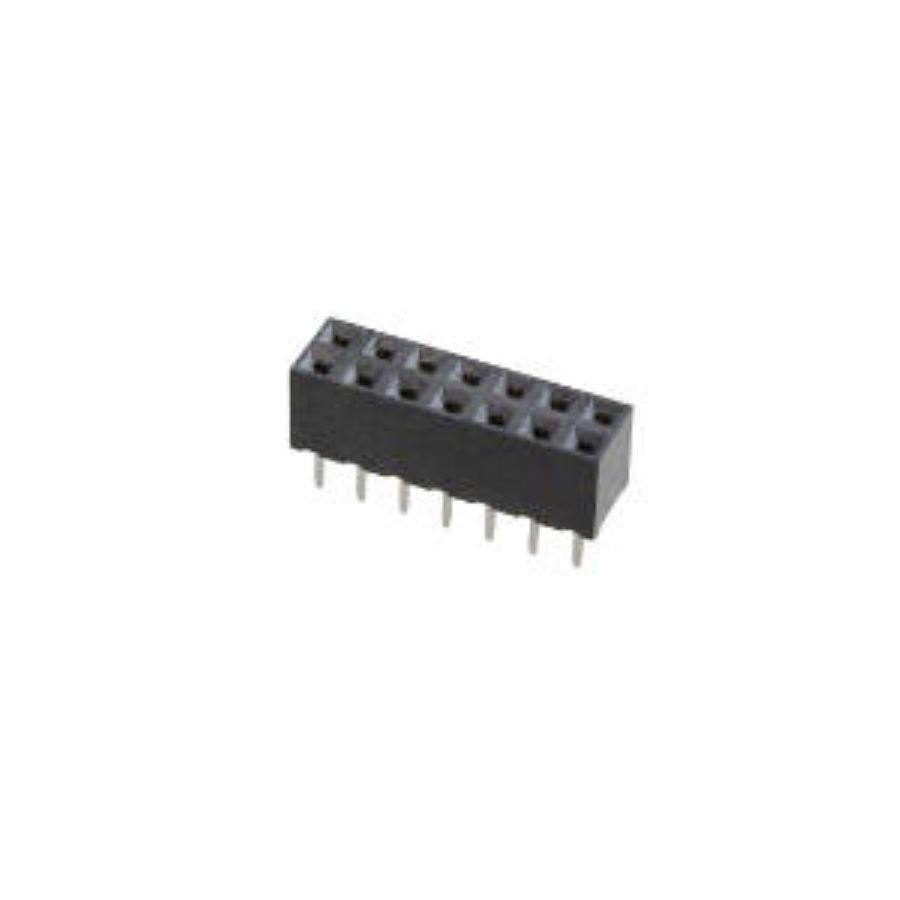

M22-7140742
Manufacturer:
Harwin
Mfr.Part #:
M22-7140742
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:14 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 14 mm |
| Width | 450 µm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.4 mm |
| Packaging | Tube |
| Depth | 4 mm |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Number of Contacts | 14 |
| Connector Type | Receptacle |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 199
Distributors
pcbx
pcbxUnit Price$1.44569
Ext.Price$1.44569
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.44569 | $1.44569 |
| 10 | $1.43970 | $14.39700 |
| 25 | $1.25760 | $31.44000 |
| 50 | $1.14542 | $57.27100 |
| 100 | $1.04324 | $104.32400 |
| 300 | $0.95018 | $285.05400 |
| 500 | $0.86542 | $432.71000 |
| 1000 | $0.78824 | $788.24000 |
