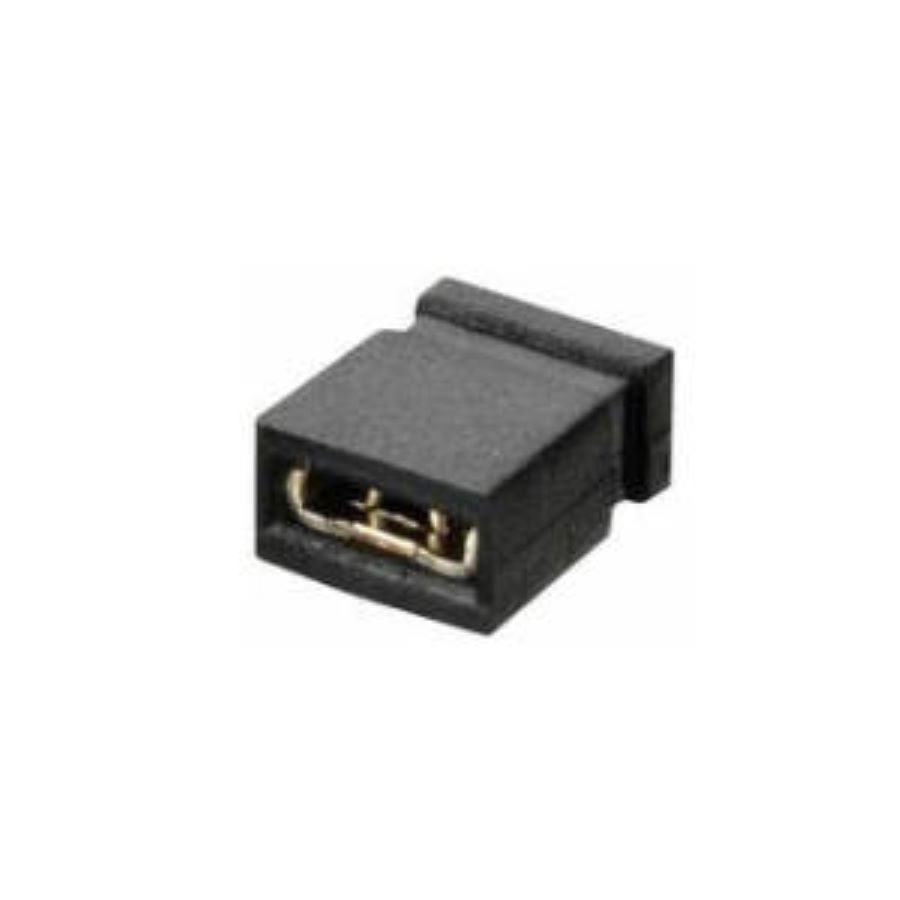

M50-1900005
Manufacturer:
Harwin
Mfr.Part #:
M50-1900005
Datasheet:
Description:
Headers and Wire Housings Through Hole Number of Positions:2 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 2.5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.9972 mm |
| Packaging | Bulk |
| Voltage Rating | 500 V |
| Depth | 3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 Ω |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
Stock: 20718
Distributors
pcbx
pcbxUnit Price$0.20654
Ext.Price$0.20654
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20654 | $0.20654 |
| 10 | $0.17772 | $1.77720 |
| 50 | $0.15867 | $7.93350 |
| 100 | $0.15105 | $15.10500 |
| 500 | $0.13481 | $67.40500 |
| 1000 | $0.12837 | $128.37000 |
| 3000 | $0.11878 | $356.34000 |
