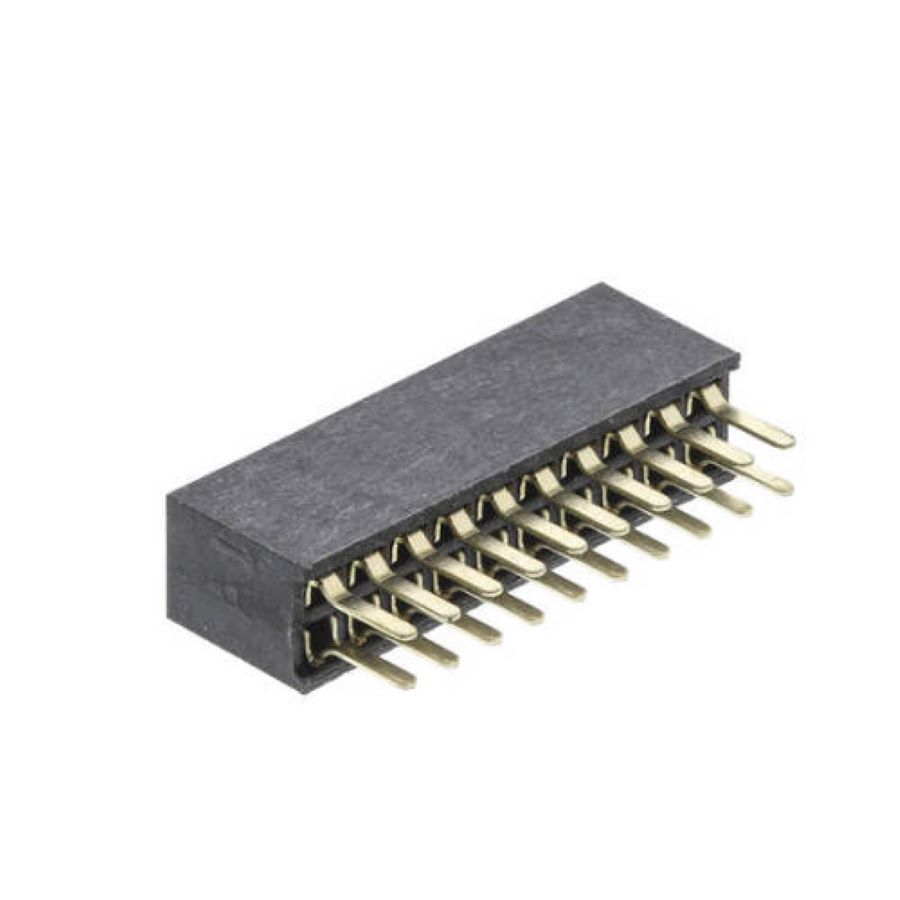

M50-3001045
Manufacturer:
Harwin
Mfr.Part #:
M50-3001045
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:20 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 13.16 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 500 V |
| Material | Thermoplastic |
| Packaging | Tube |
| Voltage Rating | 500 V |
| Depth | 3.05 mm |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Weight | 0.351 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 20 |
| Connector Type | Receptacle |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 326
Distributors
pcbx
pcbxUnit Price$1.77740
Ext.Price$1.77740
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.77740 | $1.77740 |
| 10 | $1.61496 | $16.14960 |
| 25 | $1.51408 | $37.85200 |
| 50 | $1.41135 | $70.56750 |
| 100 | $1.31559 | $131.55900 |
| 300 | $1.22633 | $367.89900 |
| 500 | $1.14312 | $571.56000 |
| 1000 | $1.06556 | $1065.56000 |
| 3000 | $0.99326 | $2979.78000 |
| 5000 | $0.92589 | $4629.45000 |
