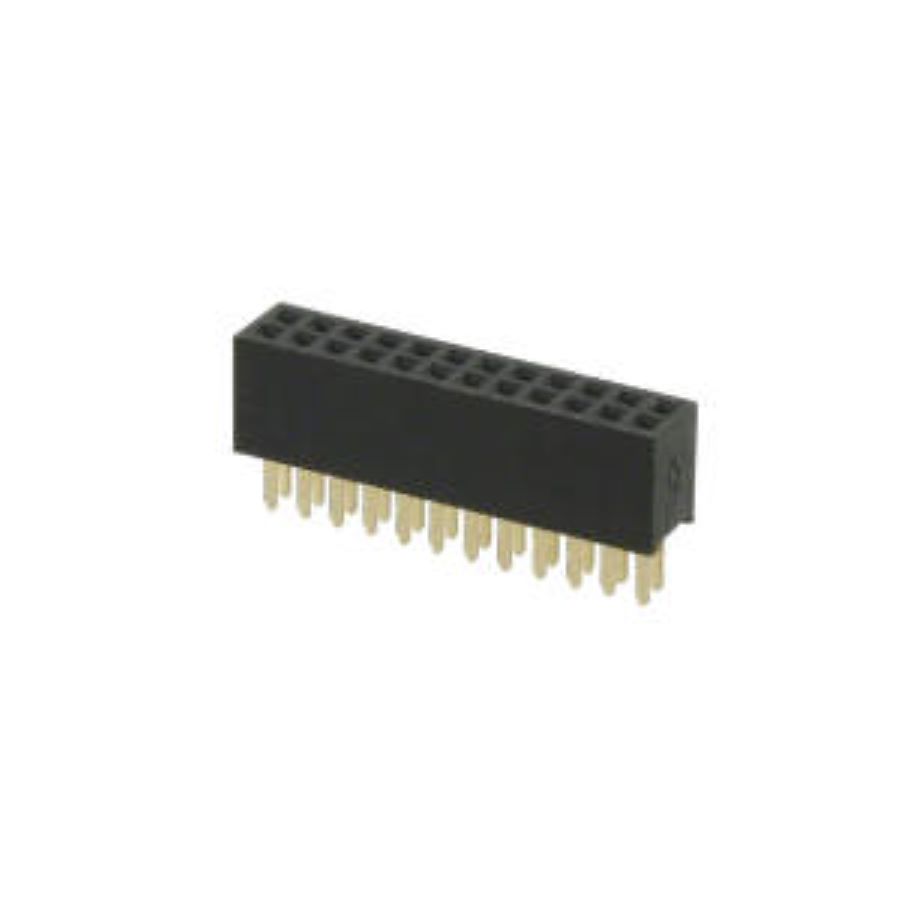

M50-3001245
Manufacturer:
Harwin
Mfr.Part #:
M50-3001245
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:24 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 15.24 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| Voltage Rating | 500 V |
| Depth | 3.05 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 24 |
| Body Material | Thermoplastic |
| Connector Type | Receptacle |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
