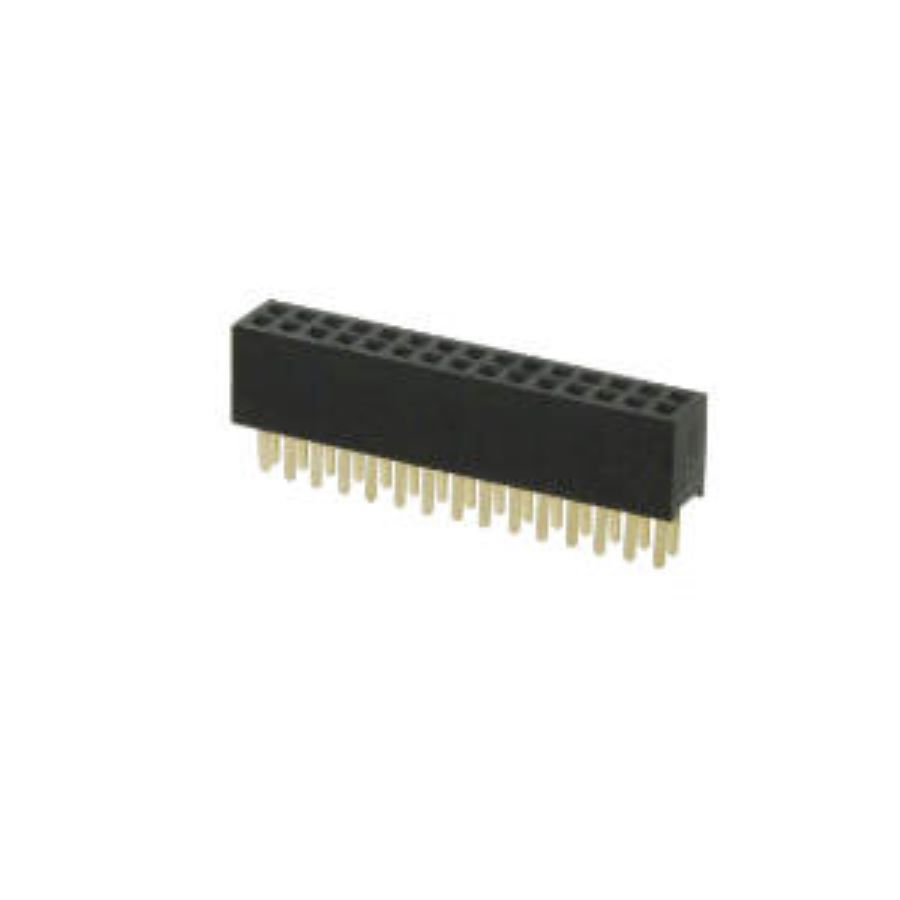

M50-3001545
Manufacturer:
Harwin
Mfr.Part #:
M50-3001545
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:30 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 19.05 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 500 V |
| Depth | 3.1 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 30 |
| Body Material | Thermoplastic |
| Connector Type | Receptacle |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 41
Distributors
pcbx
pcbxUnit Price$2.25958
Ext.Price$2.25958
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.25958 | $2.25958 |
| 10 | $2.23393 | $22.33930 |
| 25 | $2.02321 | $50.58025 |
| 50 | $1.83237 | $91.61850 |
| 100 | $1.65953 | $165.95300 |
| 300 | $1.50299 | $450.89700 |
| 500 | $1.36122 | $680.61000 |
| 1000 | $1.23281 | $1232.81000 |
