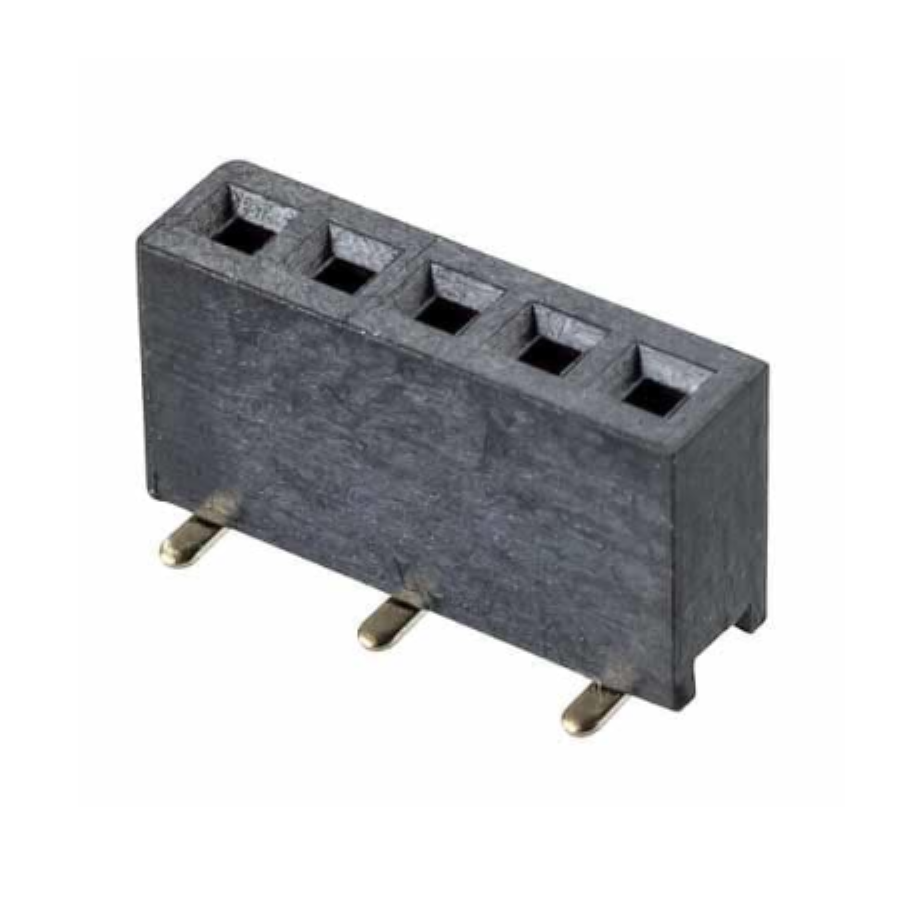

M50-3142045
Manufacturer:
Harwin
Mfr.Part #:
M50-3142045
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle Number of Positions:20 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| Voltage Rating | 500 V |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Connector Type | Receptacle |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Fastening Type | Push-Pull |
| Contact Shape | Square |
Stock: 170
Distributors
pcbx
pcbxUnit Price$1.53973
Ext.Price$1.53973
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.53973 | $1.53973 |
| 10 | $1.23880 | $12.38800 |
| 25 | $1.16083 | $29.02075 |
| 50 | $1.08776 | $54.38800 |
| 100 | $1.01929 | $101.92900 |
| 300 | $0.95513 | $286.53900 |
| 500 | $0.89501 | $447.50500 |
| 1000 | $0.83869 | $838.69000 |
