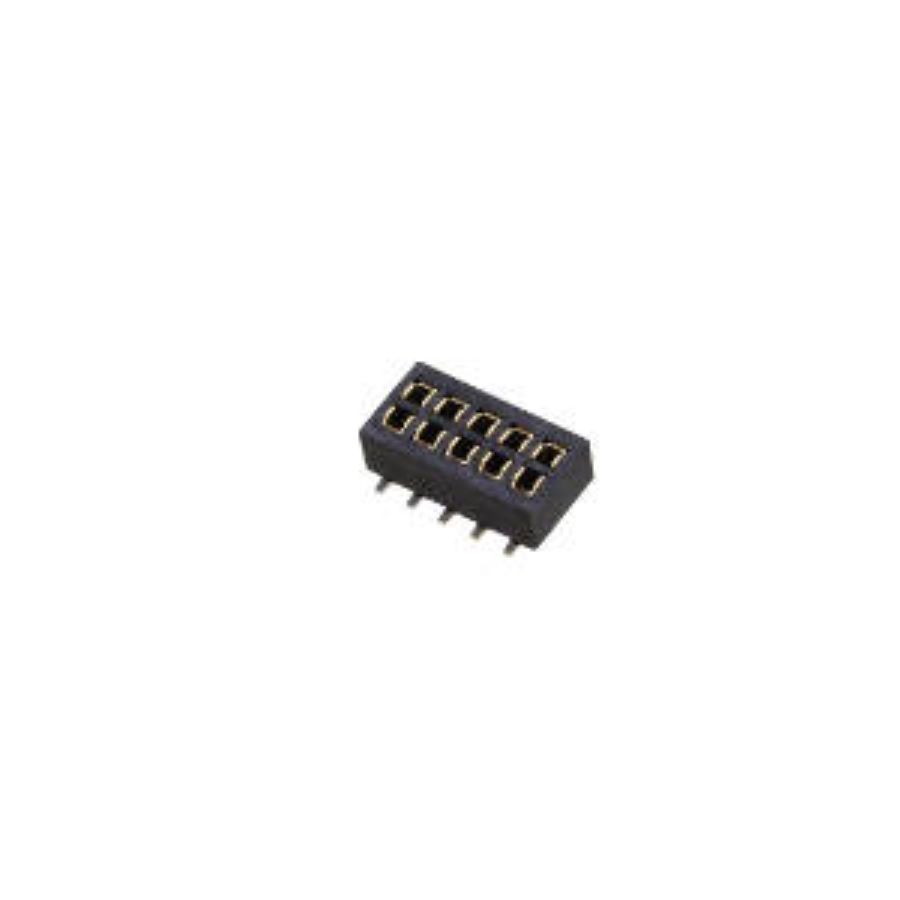

M50-3150542
Manufacturer:
Harwin
Mfr.Part #:
M50-3150542
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle, Bottom or Top Entry Number of Positions:10 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 6.75 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 500 V |
| Material | Thermoplastic |
| Packaging | Tube |
| Depth | 3.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 10 |
| Connector Type | Receptacle, Bottom or Top Entry |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 4620
Distributors
pcbx
pcbxUnit Price$2.09571
Ext.Price$2.09571
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.09571 | $2.09571 |
| 10 | $1.95983 | $19.59830 |
| 25 | $1.83276 | $45.81900 |
| 50 | $1.71393 | $85.69650 |
| 100 | $1.60281 | $160.28100 |
| 300 | $1.49889 | $449.66700 |
| 500 | $1.40171 | $700.85500 |
| 1000 | $1.31083 | $1310.83000 |
| 3000 | $1.22584 | $3677.52000 |
| 5000 | $1.14639 | $5731.95000 |
