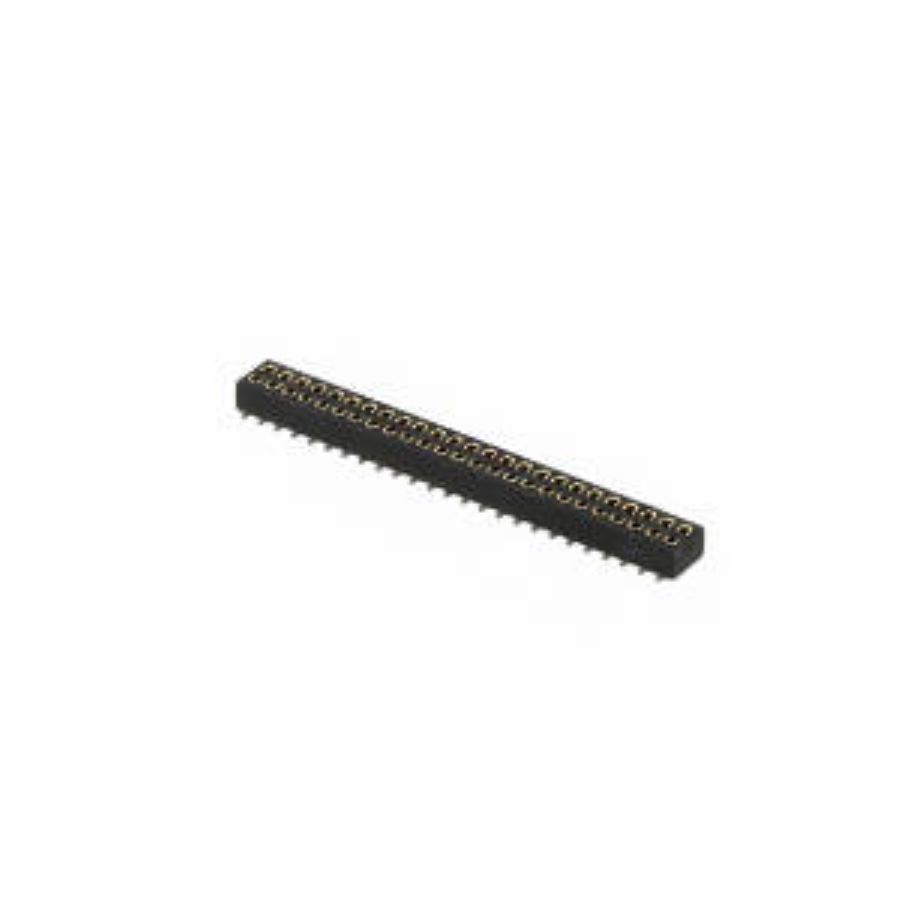

M50-3152542
Manufacturer:
Harwin
Mfr.Part #:
M50-3152542
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle, Bottom or Top Entry Number of Positions:50 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 32.15 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 500 V |
| Material | Thermoplastic |
| Packaging | Tube |
| Depth | 3.4 mm |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 50 |
| Connector Type | Receptacle, Bottom or Top Entry |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Nylon |
| Contact Resistance | 15 mΩ |
| Contact Gender | Female |
Stock: 1
Distributors
pcbx
pcbxUnit Price$6.51456
Ext.Price$6.51456
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.51456 | $6.51456 |
| 10 | $5.99562 | $59.95620 |
| 25 | $5.60417 | $140.10425 |
| 50 | $5.23828 | $261.91400 |
| 100 | $4.89628 | $489.62800 |
| 300 | $4.57660 | $1372.98000 |
| 500 | $4.27780 | $2138.90000 |
| 1000 | $3.99850 | $3998.50000 |
