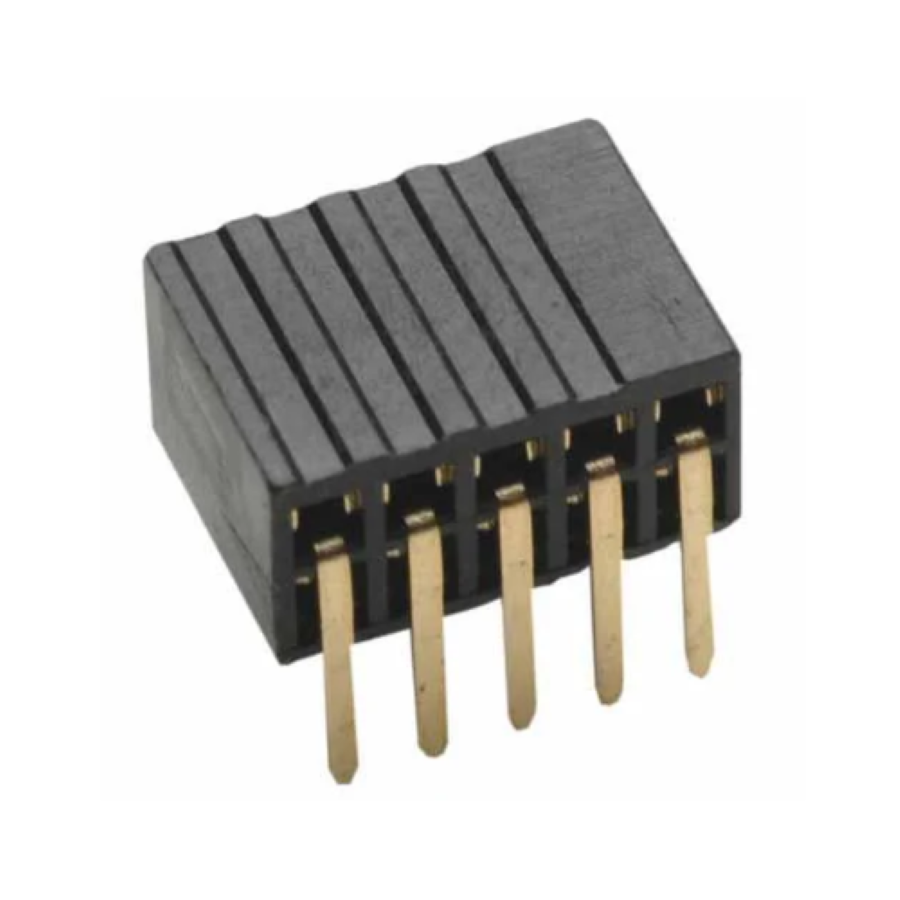

M50-3201045
Manufacturer:
Harwin
Mfr.Part #:
M50-3201045
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:20 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 13.2 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 150 V |
| Packaging | Tube |
| Voltage Rating | 500 V |
| Depth | 4.83 mm |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass, Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 20 |
| Connector Type | Receptacle |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Gender | Female |
Stock: 396
Distributors
pcbx
pcbxUnit Price$2.30318
Ext.Price$2.30318
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.30318 | $2.30318 |
| 10 | $2.29036 | $22.90360 |
| 25 | $2.00224 | $50.05600 |
| 50 | $1.86109 | $93.05450 |
| 100 | $1.72989 | $172.98900 |
| 300 | $1.60794 | $482.38200 |
| 500 | $1.49459 | $747.29500 |
| 1000 | $1.38926 | $1389.26000 |
