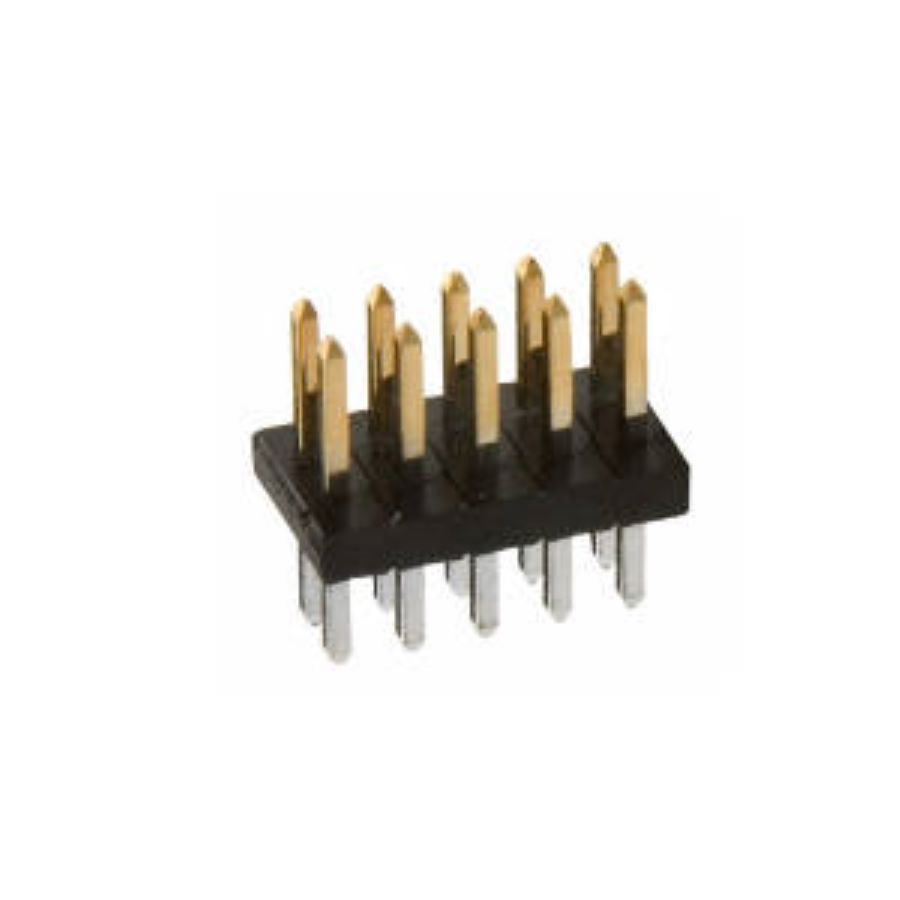

M50-3500542
Manufacturer:
Harwin
Mfr.Part #:
M50-3500542
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:10 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 6.35 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 500 V |
| Material | Thermoplastic |
| Packaging | Bulk |
| Depth | 3.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Number of Contacts | 10 |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Insulation Material | Thermoplastic |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 2.9972 mm |
Stock: 19607
Distributors
pcbx
pcbxUnit Price$0.84434
Ext.Price$0.84434
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.84434 | $0.84434 |
| 10 | $0.71958 | $7.19580 |
| 25 | $0.68148 | $17.03700 |
| 50 | $0.64540 | $32.27000 |
| 100 | $0.61124 | $61.12400 |
| 300 | $0.57747 | $173.24100 |
| 500 | $0.54557 | $272.78500 |
| 1000 | $0.51952 | $519.52000 |
| 3000 | $0.49085 | $1472.55000 |
| 5000 | $0.46377 | $2318.85000 |
| 10000 | $0.44166 | $4416.60000 |
