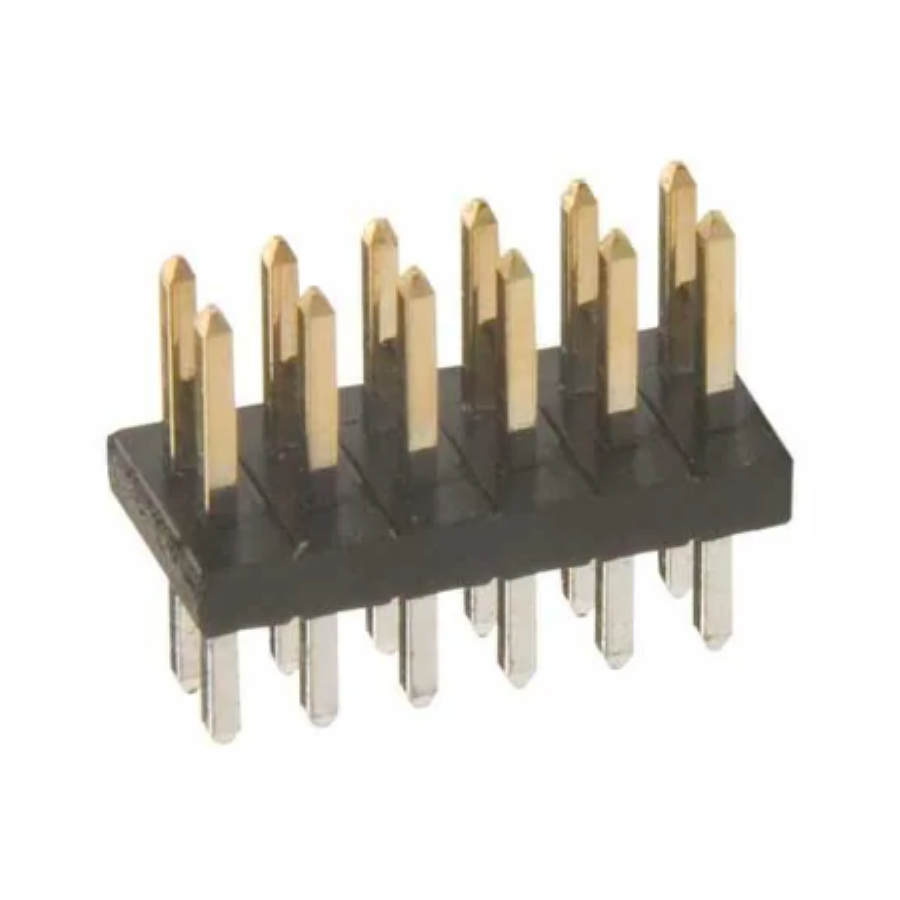

M50-3500742
Manufacturer:
Harwin
Mfr.Part #:
M50-3500742
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:14 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 8.89 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 3.41 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 1.27 mm |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 14 |
| Connector Type | Header |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Contact Mating Length | 2.9972 mm |
Stock: 50
Distributors
pcbx
pcbxUnit Price$1.12654
Ext.Price$1.12654
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.12654 | $1.12654 |
| 10 | $0.95480 | $9.54800 |
| 25 | $0.90436 | $22.60900 |
| 50 | $0.85659 | $42.82950 |
| 100 | $0.81133 | $81.13300 |
| 300 | $0.76652 | $229.95600 |
| 500 | $0.72419 | $362.09500 |
| 1000 | $0.68962 | $689.62000 |
| 3000 | $0.65158 | $1954.74000 |
| 5000 | $0.61564 | $3078.20000 |
| 10000 | $0.58629 | $5862.90000 |
